SQS - FIFO Queues

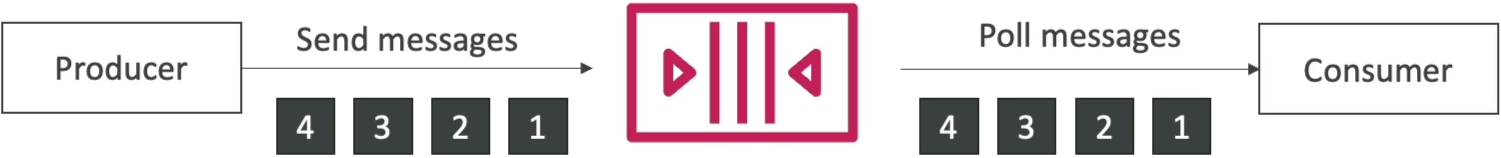

SQS FIFO (First-In-First-Out) queues guarantee that messages are processed in the exact, chronological order they are received (First-In, First-Out) and are delivered exactly once. To preserve this perfect sequence, FIFO queues trade off the unlimited scale of standard queues for strict architectural constraints. They require a .fifo naming suffix, enforce built-in 5-minute message deduplication windows, and leverage grouping IDs to distribute workloads across parallel consumer streams safely.

Key Takeaways​

Rules of FIFO​

To lock in a perfect score on FIFO questions, you must memorize these specific operating boundaries and parameters:

  • The Naming Law: When provisioning a FIFO queue, the queue name must end with the .fifo suffix handler string. If you omit this, CloudFormation or the AWS API will throw a validation error.
  • Throughput Capacity Ceilings: Unlike standard queues which scale infinitely, FIFO queues have built-in velocity caps to guarantee absolute ordering:
    • Standard Operations: Up to 300 messages per second for individual Send, Receive, or Delete API transactions.
    • Batching Operations: Up to 3,000 messages per second if you group messages into batches of 10 using batch API signatures.
  • Exactly-Once Delivery (Deduplication): SQS eliminates duplicates at the infrastructure level. Every message requires a unique Message Deduplication ID. If a producer accidental-spams the exact same deduplication ID within a moving 5-minute window, SQS silently drops the duplicate message on the floor.
    • Pro-Tip: You can enable Content-Based Deduplication in the settings, which tells SQS to automatically calculate a SHA-256 hash of the message text body to use as the deduplication ID itself.

Advanced Ordering Mechanics: Message Group IDs​

The absolute favorite trick question on the exam revolves around how FIFO queues interact with multiple parallel consumers. If you have 5 workers pulling from a FIFO queue, how do you stop them from stepping on each other's sequencing? You use the Message Group ID.

  • The Core Definition: A Message Group ID is a mandatory metadata string tag passed with every message.
  • The Sequencing Guardrail: SQS guarantees that all messages sharing the exact same Message Group ID are processed in strict chronological order.
  • Parallel Fan-Out Scaling: SQS locks a single Message Group ID to a single consumer at a time. If you pass messages with Group_ID: "User_A" and other messages with Group_ID: "User_B", SQS can hand User A's thread to Worker 1, and User B's thread to Worker 2. This is how you scale out a FIFO queue horizontally!

🛠️ Step-by-Step FIFO Console Playbook​

Here is the exact sequence to stand up and validate a sequential, deduplicated queue inside your AWS environment:

Step 1: Spin Up the Infrastructure Wrapper​

  • Go to the Amazon SQS Dashboard, click Create queue, and select FIFO.
  • Set the name exactly to DemoQueue.fifo.
  • Toggle Content-based deduplication to Enabled so SQS auto-hashes the payload contents. Hit create.

Step 2: Produce Sequential Payloads​

  • Click Send and receive messages on your new FIFO queue.
  • Send 4 rapid-fire payloads (Hello World 1 through Hello World 4).
  • For every message, set the Message group ID to demo. Because content deduplication is active, you can leave the Deduplication ID box blank or pass unique identifiers (1, 2, 3, 4).

Step 3: Consumer Pull & Verify​

  • Scroll down and hit Poll for messages.
  • Inspect the message list order inside the data grid. SQS serves them up in absolute chronological sequence: 1⟶2⟶3⟶4

Exam Tips​

  • The Banking Ledger Requirement: Look for keywords specifying strict sequencing and transaction correctness (e.g., "A financial microservice must process account deposit events before withdrawal events for every unique user id, and no transaction can ever be duplicated."). The definitive answer is SQS FIFO Queues using the User ID as the Message Group ID.
  • The Scaling Bottleneck Resolution: If a scenario notes that a FIFO queue is experiencing processing lag because a single backend worker can't keep up with the volume, look for the answer stating that you should increase the variety of Message Group IDs inside your producer payloads to allow multiple parallel consumers to pull separate group streams concurrently.

🚀 Practice Test​

Question: A development team is building an e-commerce order fulfillment service. The system must ensure that when a customer modifies an active order, the backend warehouse application receives the OrderCreated message before the OrderModified message. Additionally, under no circumstances should network retries cause duplicate order events to land inside the database. Which AWS configuration guarantees this operational pattern?

  • A. Create an Amazon SQS FIFO queue named order-pipeline.fifo, ensure all messages related to a single order share the same Message Group ID, and enable Content-Based Deduplication.
  • B. Configure an Amazon SQS standard queue and set the VisibilityTimeout global attribute to 12 hours.
  • C. Deploy an AWS Elastic Beanstalk cluster backed by an external JSON template via CloudFormation StackSets.
  • D. Trigger a PurgeQueue API action string immediately before polling execution loops.

Correct Answer: A. SQS FIFO Queues natively solve both sequencing and duplication problems. Appending .fifo ensures first-in, first-out accuracy at the Message Group ID tier, while the deduplication window blocks network retries from polluting your database with duplicate orders.
