Lambda Layers - Hands On

Stephane’s hands-on lab exposes a massive real-world performance trap: data science libraries like Pandas and NumPy are notoriously heavy and complex to compile directly inside local zip files. Leveraging the pre-built AWS-Managed Layers lets you skip the packaging headache entirely.

🛠️ Step-by-Step Lambda Layers Hands On​

1. Replicating the Broken Dependency State​

• Step 1: Bootstrap the Consumer Workspace

  • Spin up a new function from scratch named Lambda-layer-demo using the Python 3.14 runtime environment.

• Step 2: Inject the Data Science Code

  • Drop a sample Pandas data manipulation snippet into your code editor panel:

    import json
    import pandas as pd  # ⚠️ This will hard-crash during cold start initializations!

    def lambda_handler(event, context):
        # 1. Generate a raw dictionary matrix
        raw_data = {
            'Name': ['Luffy', 'Zoro', 'Nami', 'Sanji'],
            'Age': [19, 21, 20, 21],
            'Role': ['Captain', 'Swordsman', 'Navigator', 'Cook']
        }

        # 2. Parse the payload utilizing the Pandas DataFrame engine
        df = pd.DataFrame(raw_data)
        adults_df = df[df['Age'] >= 21]

        return {
            'statusCode': 200,
            'body': adults_df.to_json(orient='records')
        }


• Step 3: Trigger the Code Violation Crash

  • Hit Deploy, head over to the Test tab, and execute a mock invocation run.
  • The Crash State: The microVM drops a hard environment exception: Runtime.ImportModuleError: Unable to import module 'lambda_function': No module named 'pandas'.

2. Mounting the Pre-Compiled AWS Layer​

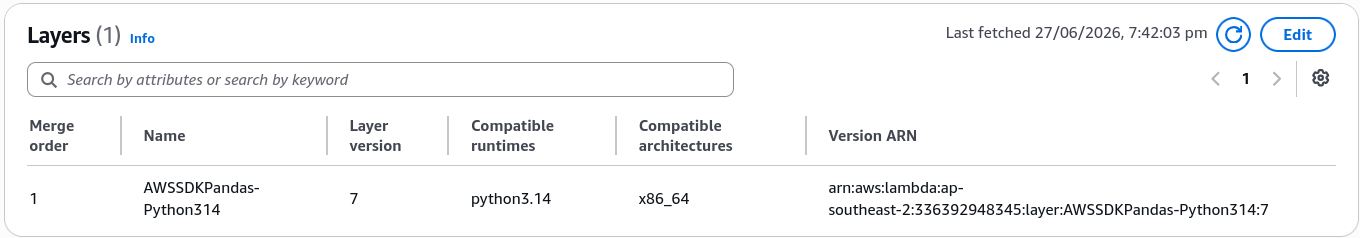

• Step 4: Bind the Centralized Data Layer
  • Scroll to the absolute bottom of the function visualization diagram panel ──► look for the Layers subsection summary.
  • Click Edit and Add a layer.
  • Layer Source Selection: Toggle the radio option for AWS layers.
  • The Managed Target Index: From the dropdown selector array, choose AWSSDKPandas-Python314 (or the version matching your runtime target environment). Choose the latest iteration and hit Add and then Save.

3. Verification and Runtime Path Ingestion​

Head right back to your function's Test tab and click the execution button a second time.

The invocation transitions to a flawless green success box, clearing the data stream effortlessly, bro:

{
  "statusCode": 200,
  "body": "[{\"Name\":\"Zoro\",\"Age\":21,\"Role\":\"Swordsman\"},{\"Name\":\"Sanji\",\"Age\":21,\"Role\":\"Cook\"}]"
}

🔍 Behind-the-Scenes Container Telemetry Analysis:​

When you click Add on that managed layer, AWS pulls down the pre-compiled Pandas zip bundle behind the scenes and mounts it directly into the function container's /opt root runtime system.

Because AWS manages the underlying system variables, the Python runtime environment natively appends /opt/python into its global module loading array list:

$\text{Lambda Container Provision} \implies \text{Mount Layer Zip to } \mathbf{/opt} \longrightarrow \text{Auto-Append to } \mathbf{sys.path} \implies \text{Successful In-Memory Import}$

Exam Tips​

• The Internal Layer Folder Hierarchy Rule: If the exam asks you how to package your own custom shared libraries into a layer instead of using an AWS-managed one, pay close attention to the exact directory folder naming matrix. If you don't unzip files into the precise structural sub-folders the platform expects, the runtime engine will fail to locate your libraries:
  • For Node.js layers, your node modules must be nested inside a path structured exactly as nodejs/node_modules/.
  • For Python layers, your wheels and packages must be compressed inside a directory path structured as python/ or python/lib/python3.x/site-packages/.
