DynamoDB WCU & RCU - Throughput

In your professional career, you've likely seen systems fall over because someone threw a high-traffic workload at a database layer without thinking about the underlying storage engine's physical limits. DynamoDB handles this using Partitions, but to protect those partitions from throttling, you must master the math of throughput allocation.

Key Takeaways​

Before running computations, you have to choose how AWS bills you for performance:

  • Provisioned Capacity Mode (Cost-Optimized Baseline): You explicitly define your maximum sustained scale thresholds via Write Capacity Units (WCUs) and Read Capacity Units (RCUs). You are invoiced flat hourly rates for these allocations regardless of actual usage traffic. Best for predictable, steady workloads.
  • On-Demand Capacity Mode (Zero-Management Elasticity): The platform handles all capacity scaling dynamically with zero upfront provisioning. You are billed directly per transaction based on Write Request Units (WRUs) and Read Request Units (RRUs).
  • ⚠️ The Expense Trap: On-Demand is roughly 2.5×2.5\times more expensive per request than provisioned mode! It's fantastic for highly unpredictable, spiky, or completely unknown new workloads, but a terrible choice for high-volume, steady-state production lines.
  • The Flipping Gate: You can switch a live table between Provisioned and On-Demand tracking states once every 24 hours.

🧮 The Write Capacity Unit (WCU) Master Formula​

1 WCU≡1 Write / Second for an item up to 1 KB in size\text{1 WCU} \equiv \text{1 Write / Second for an item up to 1 KB in size}

🛑 The Rule of the Upper Boundary Ceiling:​

DynamoDB never processes fractional values when evaluating file dimensions. Every item size calculation MUST be rounded UP to the nearest whole kilobyte before applying multipliers, bro!

Total WCUs Required=(Items per Second)×⌈Average Item Size in KB1 KB⌉\text{Total WCUs Required} = \left( \text{Items per Second} \right) \times \left\lceil \frac{\text{Average Item Size in KB}}{1\text{ KB}} \right\rceil

🏢 Example Problem Space:​

  • The Task Scenario: Your application needs to ingest 120 items per minute, and each isolated item footprint measures exactly 4.5 KB.
    • Step A: Standardize the Chronological Cadence: Items per Second=120 Items60 Seconds=2 Items/Sec\text{Items per Second} = \frac{120\text{ Items}}{60\text{ Seconds}} = 2\text{ Items/Sec}
    • Step B: Apply the Upper Ceiling Rounding Rule: Rounded Footprint Size=⌈4.5 KB⌉=5 KB\text{Rounded Footprint Size} = \lceil 4.5\text{ KB} \rceil = 5\text{ KB}
    • Step C: Compute the Final Output Allocation: Total Throughput Allocation=2 Items/Sec×5 WCUs=10 WCUs\text{Total Throughput Allocation} = 2\text{ Items/Sec} \times 5\text{ WCUs} = \mathbf{10\text{ WCUs}}

🧮 The Read Capacity Unit (RCU) Master Formula​

1 RCU≡{1 Strongly Consistent Read / Sec2 Eventually Consistent Reads / Sec (Default)for an item up to 4 KB\text{1 RCU} \equiv \begin{cases} \mathbf{1\text{ Strongly Consistent Read / Sec}} \\ \mathbf{2\text{ Eventually Consistent Reads / Sec (Default)}} \end{cases} \text{for an item up to 4 KB}

🛑 The Rule of the 4 KB Extraction Envelope:​

Just like WCUs, you must round item footprints UP—but this time, you round up to the nearest multiple of 4 KB, chief!

Total RCUs (Strongly Consistent)=(Items per Second)×⌈Average Item Size in KB4 KB⌉\text{Total RCUs (Strongly Consistent)} = \left( \text{Items per Second} \right) \times \left\lceil \frac{\text{Average Item Size in KB}}{4\text{ KB}} \right\rceil

Total RCUs (Eventually Consistent)=(Items per Second)×⌈Average Item Size in KB4 KB⌉2\text{Total RCUs (Eventually Consistent)} = \frac{\left( \text{Items per Second} \right) \times \left\lceil \frac{\text{Average Item Size in KB}}{4\text{ KB}} \right\rceil}{2}

🏢 Example Problem Space:​

  • The Task Scenario: Your application handles 16 requests per second, each fetching an item size of 10 KB. Your project requirements mandate Eventually Consistent Reads.
    • Step A: Apply the 4 KB Envelope Rounding Rule: Rounded Footprint Size=⌈10 KB⌉ to next multiple of 4=12 KB\text{Rounded Footprint Size} = \lceil 10\text{ KB} \rceil \text{ to next multiple of 4} = 12\text{ KB} Base Units per Item=12 KB4 KB=3 Base Units\text{Base Units per Item} = \frac{12\text{ KB}}{4\text{ KB}} = 3\text{ Base Units}
    • Step B: Compute the Raw Request Ingestion Baseline: Raw Ingestion Base=16 Items/Sec×3=48 Units\text{Raw Ingestion Base} = 16\text{ Items/Sec} \times 3 = 48\text{ Units}
    • Step C: Factor the Consistency Multiplier Split: Total Throughput Allocation=48 Units2=24 RCUs\text{Total Throughput Allocation} = \frac{48\text{ Units}}{2} = \mathbf{24\text{ RCUs}}

🚨 Distributed Partitions & The Anatomy of Throttling​

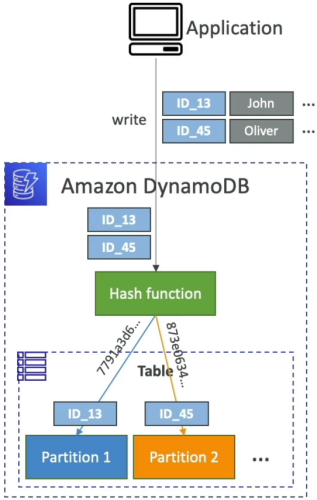

When you provision throughput capacity, DynamoDB does not allocate those units to a single monolithic engine. Instead, it divides your total throughput evenly across all the underlying physical storage partitions in the background. When you provision 1,000 WCUs1,000\text{ WCUs} and 1,000 RCUs1,000\text{ RCUs} globally across your parent table resource, DynamoDB does not pool those limits onto a single monolithic engine. It divides your throughput parameters completely evenly across all your underlying background physical storage partitions.

  • The Allocation Fragmentation Reality: If your massive data pool spans 10 discrete physical storage partition drives in the background, each partition drive receives exactly:
    Local Partition Allocation Ceiling=100 WCUs∧100 RCUs\text{Local Partition Allocation Ceiling} = 100\text{ WCUs} \quad\land\quad 100\text{ RCUs}
  • The Production Crash Hook: If a million frontend clients blast requests targeting the exact same partition key (e.g., retrieving a trending product item), 100% of that traffic hits a single physical partition drive. Even if your global table dashboard shows 90% of your provisioned capacity is sitting idle, that single partition will exhaust its local allocation ceiling instantly, throwing a hard ProvisionedThroughputExceededException crash code.

Exam Tips​

  • The Exponential Backoff Remedy: If a scenario states that an application is encountering intermediate, short-lived ProvisionedThroughputExceededException bursts during peak morning hours, don't rush to pay for more throughput capacity right away. Look for the software remedy: Implement an Exponential Backoff and Jitter Retry Strategy within the calling client application code wrapper. (This is natively handled automatically out of the box by official AWS SDK configurations!)
  • The Read Acceleration Strategy: If your application is dropping read throttling faults because a celebrity item is being accessed millions of times a minute, look straight for DynamoDB Accelerator (DAX). DAX acts as a fully managed, in-memory caching sidecar that intercepts read requests before they ever touch your database table partitions, completely wiping out read throttling issues!
