API Gateway Basics Hands On

Watching your multi-route REST API come alive directly in the browser window is exactly where the true magic of full-stack serverless engineering clicks into place, bro! 👑🌐

Stephane’s lab perfectly demonstrates how API Gateway acts as the ultimate decoupled abstraction layer. Instead of writing massive, monolithic routing charts inside an Express or Django server, you declare clean paths (/ and /houses) inside the AWS management console, mapping individual paths directly down onto micro-sized, highly focused Lambda functions.

🛠️ Step-by-Step API Gateway Baseline Hands On​

1. Provisioning the Edge Perimeters​

• Step 1: Declare the Root Engine
  • Open the API Gateway console ──► scroll to REST API (Public) ──► click Build.
  • Select New API. API Name: MyFirstAPI.
  • The Endpoint Constraint Select: Choose Regional to keep the entry endpoint local. (Remember: For real production lines with international global users, you'd pull the Edge-optimized lever to route packets through global CloudFront edge locations!).
  • Choose SecurityPolicy_TLS13_1_2_2021_06 as the security policy and IPv4 as IP address type. Click Create API.
• Step 2: Bind the Root Methods
  • Click your root / path folder ──► hit Create method.
  • Method type: GET
  • Integration type: Lambda function
  • Toggle Lambda proxy integration to Enabled 💡 (This is crucial, bro! It signals the gateway to pass the raw HTTP headers and request context straight down to the function untouched).

2. Deep-Dive Integration Boundaries: The 29-Second Hard Wall​

When you paste your Node.js runtime ARN string into the gateway handler, the system automatically writes an internal Resource-Based Permission Policy straight onto the Lambda instance behind the scenes, whitelisting lambda:InvokeFunction specifically for the gateway's source ARN string.

However, you must commit this absolute platform law to your core architecture memory:

🚨 THE API GATEWAY TIMEOUT MAXIMUM:
   ┌─────────────────────────────────────────────────────────────┐
   │ [Client Browser] ──► Pings API Endpoint ──► [API Gateway]  │
   │                                                    │        │
   │                        (Hard Execution Ceiling)    │        │
   │                        ⚠️ MAXIMUM = 29 SECONDS     │        │
   │                                                    ▼        │
   │                   [Lambda Function: 15-Minute Timeout Limit]│
   └─────────────────────────────────────────────────────────────┘

📊 3. The Structural Anatomy of Proxy Contracts​

Because we checked the Lambda Proxy Integration box, the input and output formats must match a highly specific string contract.

📥 The Incoming event Vector (What Lambda Receives)​

When you inspected CloudWatch Logs after executing a print(event) call, you saw a massive JSON map outlining the entire HTTP lifecycle:

{
  "resource": "/houses",
  "path": "/houses",
  "httpMethod": "GET",
  "headers": {
    "Accept": "text/html,application/xhtml+xml,xml",
    "Host": "x1y2z3.execute-api.us-east-1.amazonaws.com",
    "User-Agent": "Mozilla/5.0..."
  },
  "queryStringParameters": {
    "voter_id": "123"
  },
  "requestContext": {
    "stage": "dev",
    "identity": { "sourceIp": "203.0.113.195" }
  },
  "body": null
}

📤 The Mandatory Outbound Response Dictionary (What Lambda MUST Return)​

Because the gateway is acting as a blind proxy, your backend Node.js code cannot just return a raw text string. If your code outputs a simple string like "Hello World", the gateway engine will panic, fail to interpret the payload, and return a 502 Bad Gateway crash code to the client browser!

Your handler function MUST return a precisely formatted dictionary block containing these three keys, chief:

export const handler = async (event, context) => {
  console.log(JSON.stringify(event, null, 2));
  console.log(JSON.stringify(context, null, 2));
  const response = {
    headers: {
      "Content-Type": "application/json",
    },
    statusCode: 200,
    body: JSON.stringify({
      message: "Welcome to MyFirstAPI",
      trace: `${context?.awsRequestId}`,
    }),
  };
  return response;
};

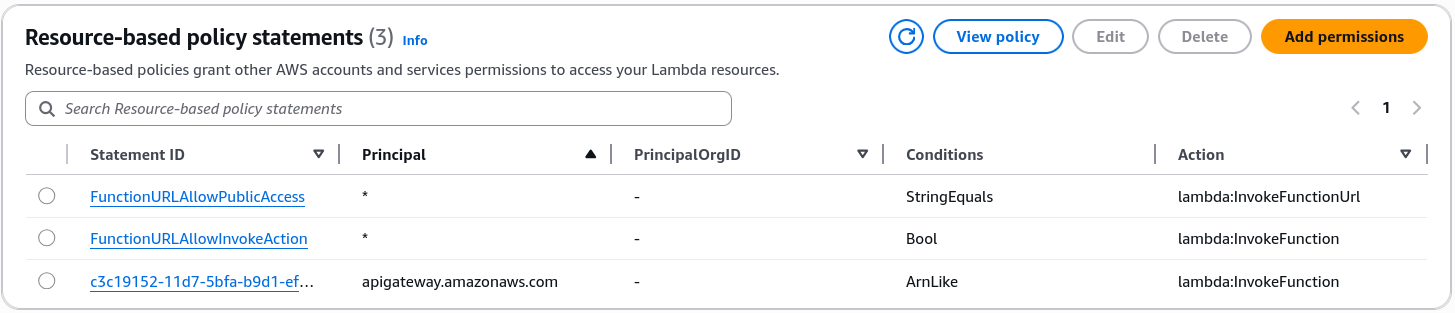

Checking Lambda Resource-Based Permissions​

Let's check the Lambda function's Resource-Based Policy to ensure the API Gateway has been granted the lambda:InvokeFunction permission. In the AWS console, navigate to your Lambda function, then go to the Permissions tab. Under Resource-based policy, you should see a statement that allows the API Gateway to invoke your function.

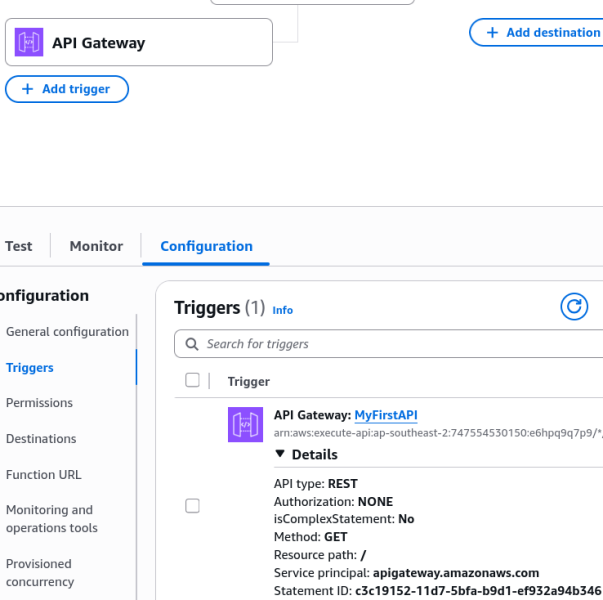

Also Observe the Trigger tab, which shows the API Gateway as a trigger for your Lambda function.

Deploy API​

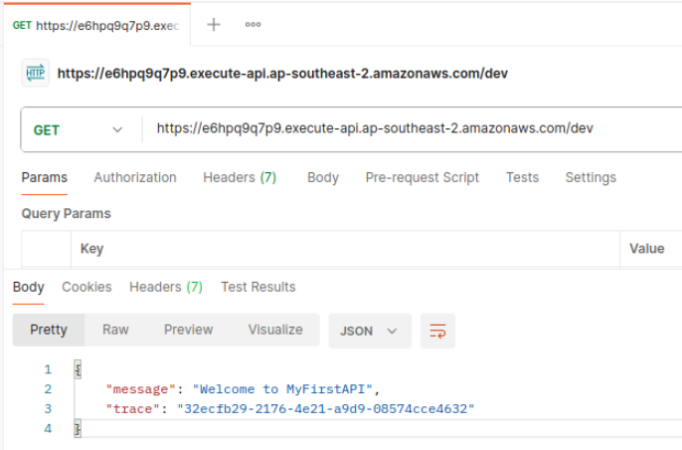

To get the Invoke URL, you need to deploy your API.

• In the API Gateway console, select your API, then click on Deploy API.
• Create a new stage (e.g., dev) and click Deploy. After deployment, you'll see the Invoke URL for your API.

Exam Tips​

• The Missing Authentication Token Trap: This is a classic exam gotcha, bro. If a developer deploys an API Gateway stage and pastes the invoke URL into a browser window, but misses a path directory or spells a resource wrong (e.g., hitting /wrong instead of /houses), the gateway returns a misleading {"message": "Missing Authentication Token"} response! The exam will try to trick you into thinking you have an IAM or Cognito permission issue.
  The Real Fix: 9 times out of 10, this simply means the client is trying to hit a URL route or HTTP method verb that does not exist on the active deployment stage!
