API Gateway Overview

Shifting from an Application Load Balancer over to Amazon API Gateway is where your serverless applications transition from basic HTTP handlers into an enterprise-grade API suite, bro! 📈🛡️

An ALB is great if you just want to dump a basic HTTP URL in front of a Lambda function. But the moment you need real-world API infrastructure—like letting third-party companies pay for access via API Keys, throttling bad actors, versioning your code, or caching heavy responses to save compute cash—API Gateway crushes it out of the park.

Key Takeaways​

🛠️ The Three Massive Backend Integration Paths​

API Gateway doesn't just pass traffic to Lambda. It acts as an abstraction router that can hook directly into three major backend styles:

🟢 Path A: Lambda Functions (Serverless Holy Trinity)​

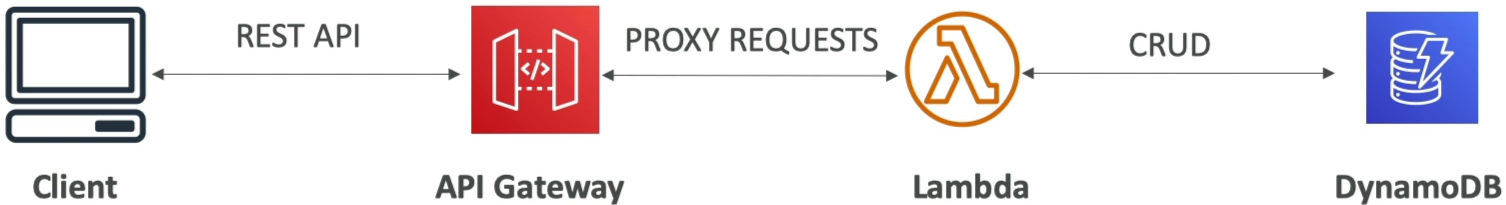

  • The Blueprint: The absolute most common serverless pattern, bro. API Gateway exposes a public REST endpoint and seamlessly maps incoming HTTP packets directly down into your backend Lambda functions.

🔀 Path B: HTTP Endpoints (The Legacy/Hybrid Shield)​

  • The Blueprint: You can point API Gateway straight at any public HTTP URL. It could be a legacy monolithic app running on an on-premises server room or an internal application load balancer backed by an EC2 server farm.
  • Why do this? It lets you slap modern cloud features (like rate-limiting, Amazon Cognito user authentication, and response caching) right on top of your old heritage code without rewriting a single legacy line.

⚡ Path C: Direct AWS Service Integration (The No-Code Speedpass)​

  • The Blueprint: You can expose any AWS API directly to the public web without putting a Lambda function in the middle to handle routing.
  • The Kinesis / SQS Pipeline Pattern: If thousands of IoT devices are blasting data packets down the wire, routing them through Client ──► API Gateway ──► Lambda ──► Kinesis burns unnecessary Lambda invocation costs and injects execution overhead. Instead, you wire up a Direct AWS Service Integration to pipe it straight through: Client ──► API Gateway ──► Kinesis Data Streams ──► S3. API Gateway handles the authentication and pushes the payload straight onto the data streaming bus natively.s

📊 The Endpoint Deployment Matrix​

When you deploy your API, you must choose the network topology that matches where your target customers live:

Endpoint TypeNetwork & Routing BlueprintIdeal Production Use Case Pattern
Edge-Optimized 🌐Routes your public API endpoints globally through the Amazon CloudFront Edge Network automatically.Default Choice. Perfect for international clients spread across the world to ensure low network latency.
Regional 📍Bypasses CloudFront completely. Your API endpoint lives strictly inside the single AWS region where it was created.Used when your customers live in the exact same geographic region. Plus, it lets you front the API with your own custom, finely tuned CloudFront distribution!
Private 🔒The API is completely invisible to the public internet wire. It can only be accessed from within your private Amazon VPC using Interface VPC Endpoints (AWS PrivateLink).Strict internal corporate backends, microservice-to-microservice internal routing, and compliance isolation.

🔐 The Front-Door Security Triage​

API Gateway acts as the absolute security perimeter for your stack It handles both Authentication (verifying who the user is) and Authorization (verifying what they are allowed to do) using three primary weapons:

🔐 API GATEWAY PERIMETER SECURITY PLANE:
   ├── 1. AWS IAM Roles ──► Perfect for internal workloads (e.g., an EC2 instance using SigV4 signatures to hit the API securely).
   ├── 2. Amazon Cognito User Pools ──► Purpose-built for consumer apps (web/mobile users authenticate via Google/Facebook).
   ├── 3. Lambda Authorizers (Custom) ──► Custom token logic (validating proprietary OAuth headers or external databases via code).

🏷️ Custom Domains and the ACM US-East-1 Trap​

If your business team demands a clean brand URL (like api.mycompany.com) instead of the default ugly AWS string, you bind a custom domain using AWS Certificate Manager (ACM) for SSL certificates.

  • ⚠️ THE EXAM TRAP: If your API Gateway is deployed as an Edge-Optimized endpoint, your ACM SSL certificate MUST be generated inside the us-east-1 (N. Virginia) region! This is because CloudFront handles the edge termination and natively pulls its certs from the primary US node. If your endpoint is configured as Regional, the cert must live in the exact same region as your API stage!

Exam Tips​

  • The High-Volume Ingestion Bottleneck: If a scenario presents an architecture where a mobile app sends real-time clickstream events directly to a Lambda function which merely validates and pushes them into an SQS queue, and the system is hitting high execution costs due to Lambda scale peaks—look for the optimization fix: Eliminate the middleman Lambda completely and implement an API Gateway Direct AWS Service Integration to drop data straight into the SQS queue or Kinesis stream.
  • The Global Client Latency Fault: If a global corporation notices that users in Europe are experiencing high connection latencies when pulling data from an API hosted in us-west-2, look for the configuration toggle: Switch the endpoint type over to Edge-Optimized to utilize AWS's worldwide edge locations for faster TLS handshakes and packet routing.
