API Gateway Stages and Deployment Hands On

Watching those real-time routing swaps execute flawlessly across separate URLs without changing a single block of base API infrastructure code is peak cloud-native engineering, bro! 👑🔀

Stephane’s lab perfectly highlights the absolute production standard for deployment orchestration. By injecting a dynamic ${stageVariables.lambdaAlias} token directly onto the backend integration ARN string, you completely decouple your code delivery lifecycle from your API Gateway management plane.

🛠️ Step-by-Step Stage Variable & Alias Integration Hands On​

1. Generating the Immutable Backend Layers​

• Step 1: Code State Mutations
  • Author your baseline Node.js runtime handler function api-gateway-stage-variables-get.

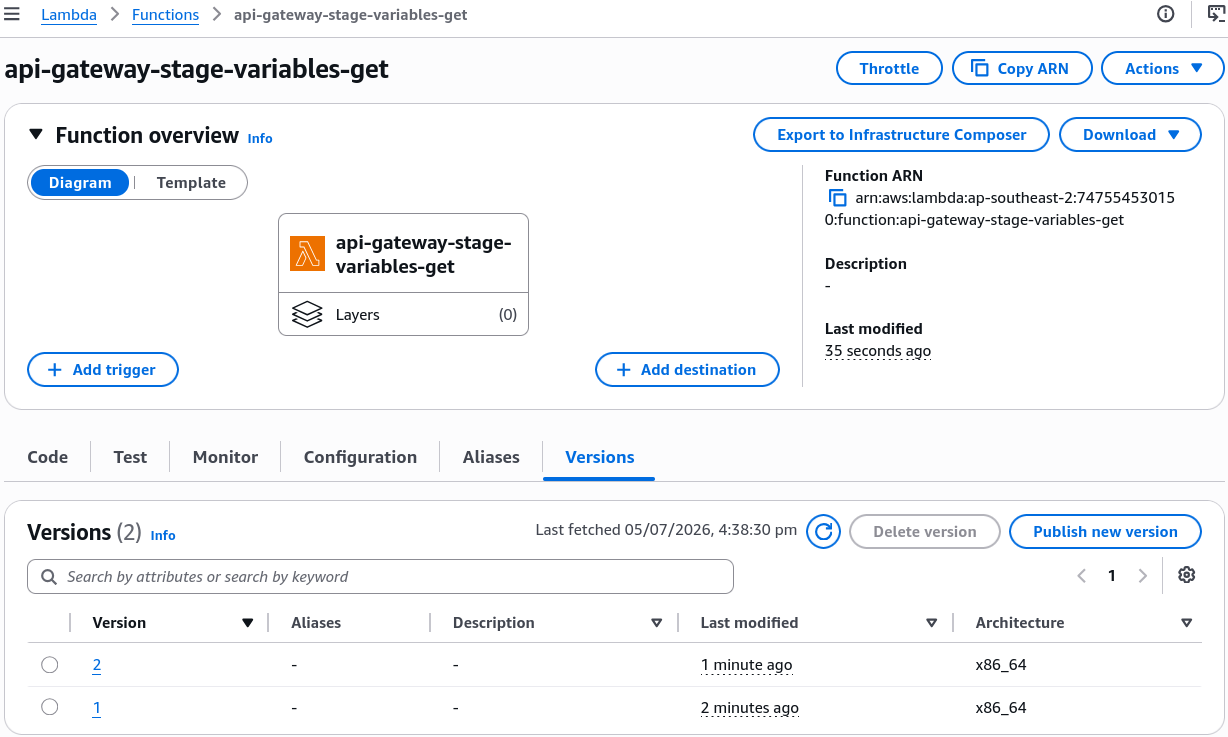

  • The Versioning Flow: Modify the code body string to output v1 ──► hit Deploy ──► under Action dropdown, select Publish new version to create frozen Version 1. Repeat this entire loop to output v2 to lock in Version 2. Finally, change the body code to say DEV and deploy it straight to the Latest drafting sheet, chief.
• Step 2: Establish the Alias Topology

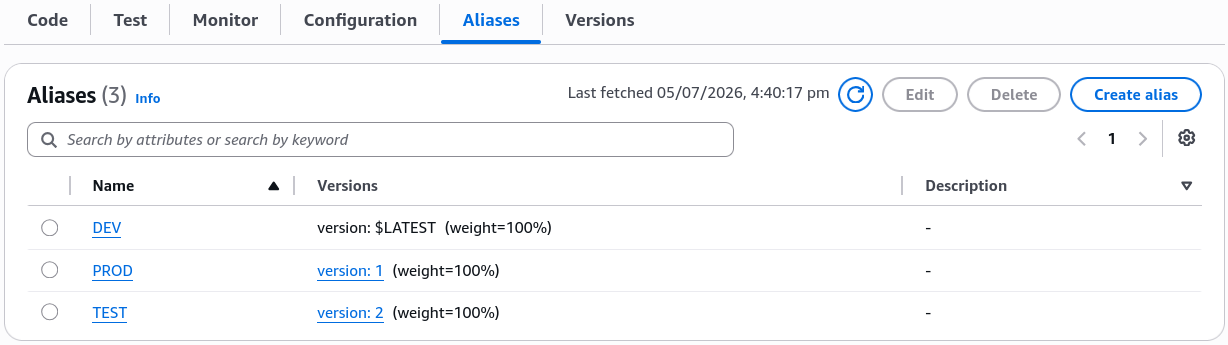

  • Under the Lambda function dashboard Aliases tab, provision three distinct gateway targets, bro:
  • Create alias PROD ──► link it strictly to immutable Version 1
  • Create alias TEST ──► link it strictly to immutable Version 2
  • Create alias DEV ──► link it directly to moving target Latest

2. Injecting the Dynamic Routing Token (API Gateway)​

• Step 3: Wire the Variable Suffix

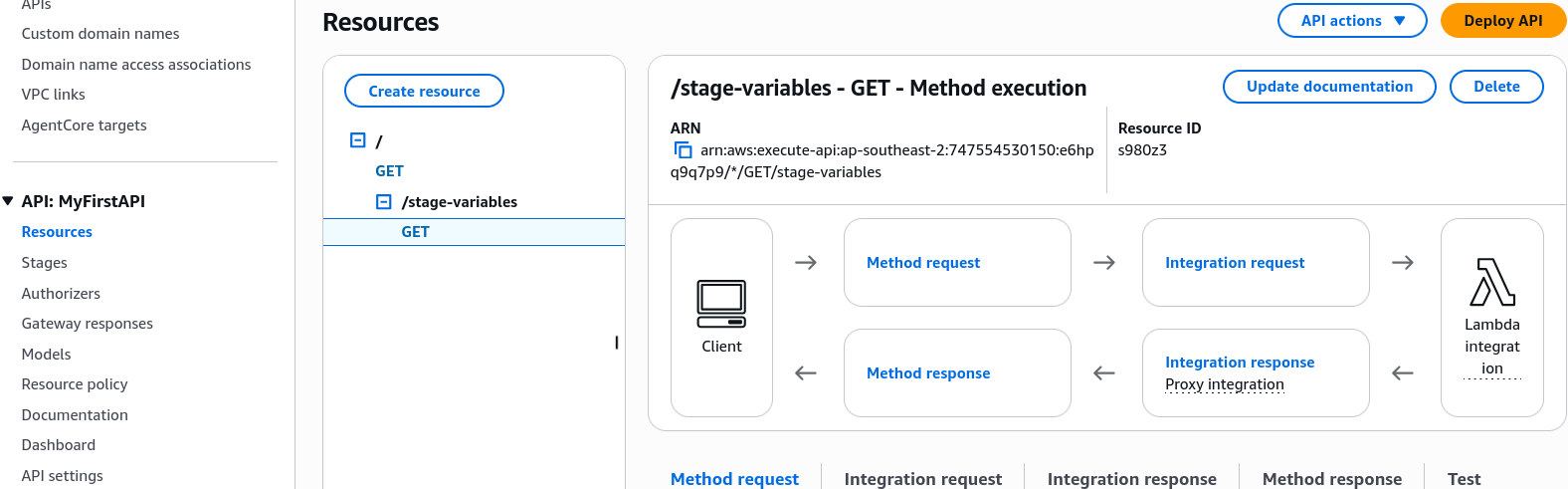

  • Create a fresh path resource called /stage-variables ──► add a GET method.

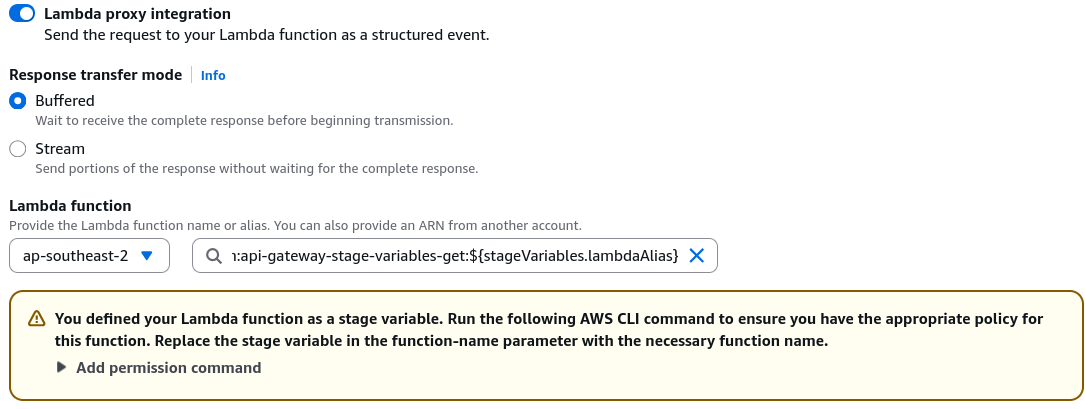

  • Target Integration ARN layout: Paste your base function ARN, but append the dynamic runtime suffix tag:

  $\text{Integration Target} \longrightarrow \text{arn:aws:lambda:ap-southeast-2:123456789012:function:my-func:}\mathbf{\$\{stageVariables.lambdaAlias\}}$

• Step 4: Execute the Resource Policy Command (The Access Matrix) 🚨

  • Because the API Gateway interface sees a dynamic string instead of a static function name, the console UI cannot auto-generate resource-based policy permissions for you. You have to open AWS CloudShell and manually run a standard aws lambda add-permission execution block three times down the wire to allow the gateway to hit each individual alias target:
  🔓 Whitelisting the PROD Alias

  aws lambda add-permission \
    --function-name "arn:aws:lambda:ap-southeast-2:747554530150:function:api-gateway-stage-variables-get:PROD" \
    --source-arn "arn:aws:execute-api:ap-southeast-2:747554530150:e6hpq9q7p9/*/GET/stage-variables" \
    --principal apigateway.amazonaws.com \
    --statement-id 616bfcc0-0272-479f-94db-14a1a2bbc847 \
    --action lambda:InvokeFunction


  (You duplicate this exact structural block two more times, swapping out the trailing alias string and statement ID tags for TEST and DEV.)

  • Finally, hit the Create method button to lock in the new integration target.

3. Deploying the Distinct Environment Stages​

• Step 5: Provision Stage Context Variables

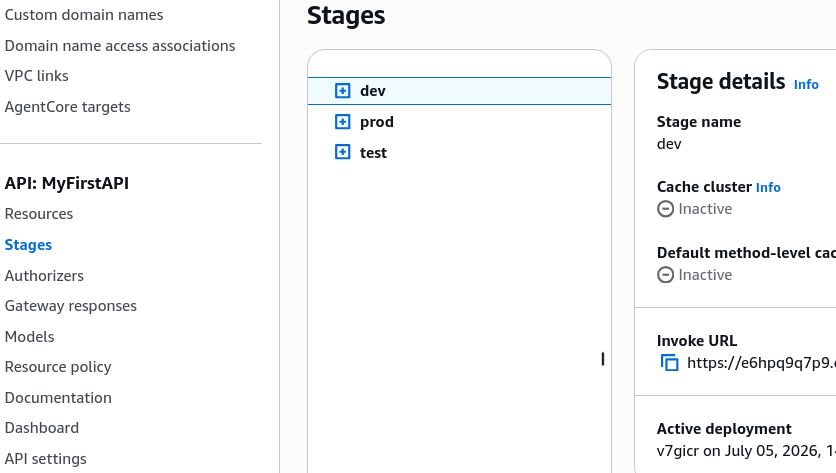

  • Hit Deploy API three separate times to create three independent live runtime environments: prod, test, and dev.

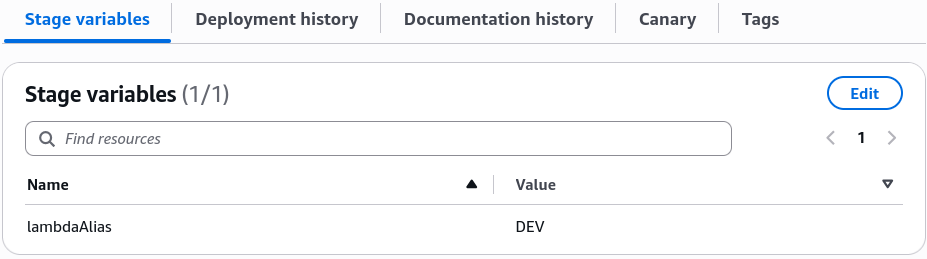

  • Navigate into each individual stage dashboard ──► click the Stage Variables configuration tab ──► declare your key-value matching strings:
    • Inside prod stage parameters, set key lambdaAlias = PROD
    • Inside test stage parameters, set key lambdaAlias = TEST
    • Inside dev stage parameters, set key lambdaAlias = DEV

🔍 4. The Live Execution Traffic Output​

Once those variables are locked in, your public endpoints map instantly to their corresponding backend code layers via your web browser or terminal curls, bro:

🚀 RUNTIME STAGE PATH MAP:

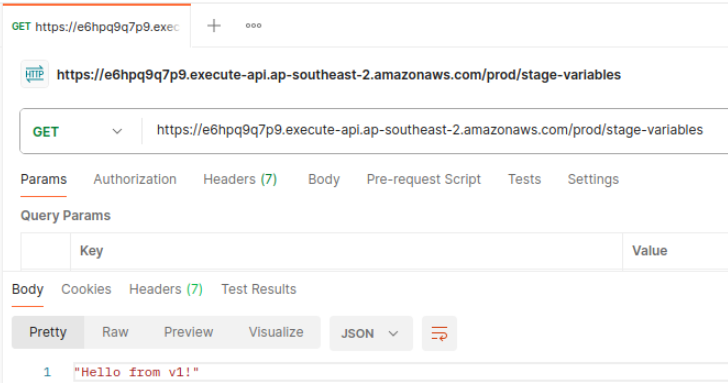

   ├── https://...execute-api.../prod/stage-variables ──► Resolves to PROD Alias ──► Returns "Hello from Lambda v1", chief!
   ├── https://...execute-api.../test/stage-variables ──► Resolves to TEST Alias ──► Returns "Hello from Lambda v2"
   └── https://...execute-api.../dev/stage-variables  ──► Resolves to DEV Alias  ──► Returns "Hello from Lambda in DEV"!

Exam Tips​

• The Broken Resource Policy Trap: This is a high-priority debugging scenario on the exam blueprint. If a developer sets up an API Gateway using stage variables to target multiple Lambda aliases, configures the stage variables perfectly, but gets a hard 505 Internal Server Error or a 403 AccessDenied message the exact second they hit the live URLs—look straight for the resource access layer. The developer forgot to manually execute the aws lambda add-permission CLI scripts to grant API Gateway access to each individual explicit alias ARN wrapper Whitelisting the base function name is not enough; when using stage variables with aliases, each alias must carry its own explicit invoke permission on the Lambda side!
