CodeBuild Hands On Part 1

We'll be spinning up a build container project in AWS CodeBuild, connecting it to a GitHub repository, and running our first build. This is the first step in creating a fully automated CI/CD pipeline for your application.

Stephane’s walkthrough guides you through connecting your source repository using OAuth, selecting a standard Linux execution standard. The beautiful thing about CodeBuild is that it does not guess—it fails gracefully with a clear error the exact second a project configuration breaks, helping you troubleshoot instantly.

Hands On​

🔨 1. Provisioning the Core Build Canvas​

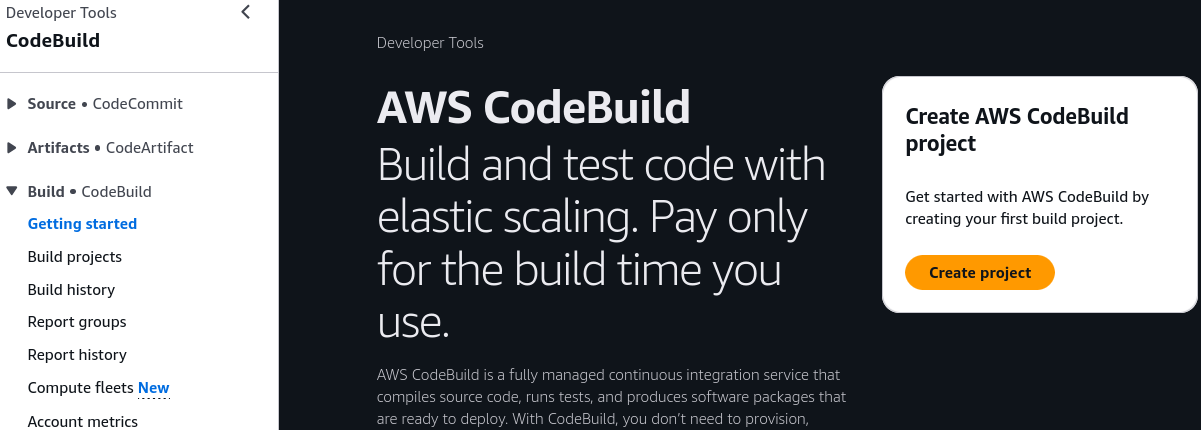

  • Enter the Builder Console: Jump into the AWS Management Console ──► pull up the CodeBuild dashboard panel ──► click Create build project.

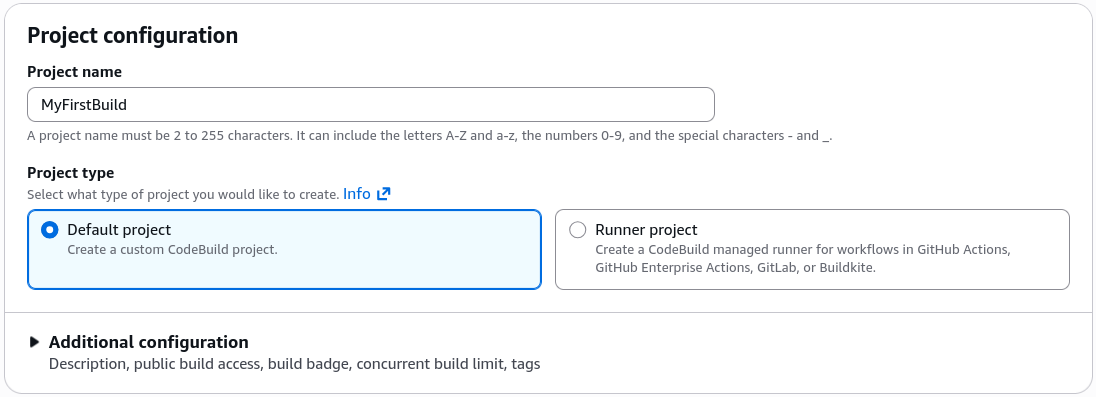

  • Establish the Identity Envelope: Provide a clear name like MyFirstBuild, and leave descriptions, build badges, and global tags at their default empty settings.

📡 2. Establishing the Source Webhook Line (GitHub Linkage)​

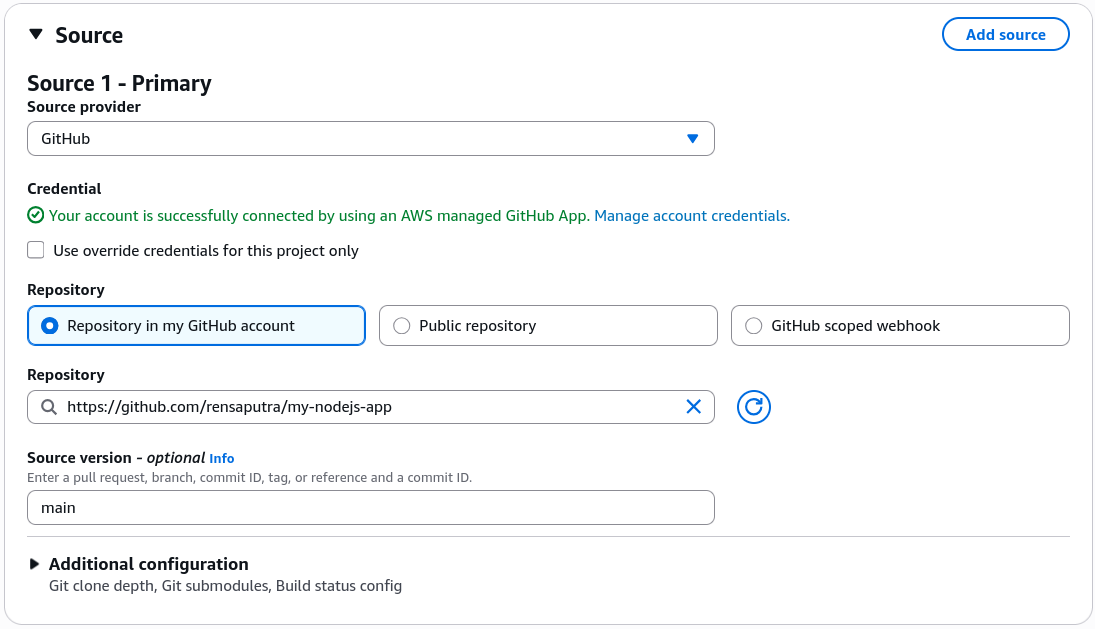

  • Target the Code Provider: Under the Source configuration panel, click the dropdown list and select GitHub.
  • The Cryptographic Authentication Handshake: Choose the Connect using OAuth track ──► click the Connect to GitHub button. Console Hook: This prompts a fresh browser OAuth popup window. Click Authorize AWS CodeSuite to bind your AWS account right to your Git profile.
  • Bind the App Repository: Paste or search for your specific tracking repository folder (my-nodejs-app).
  • Declare the Deployment Branch: Set the Source Version tracking parameter explicitly to the main or master branch.

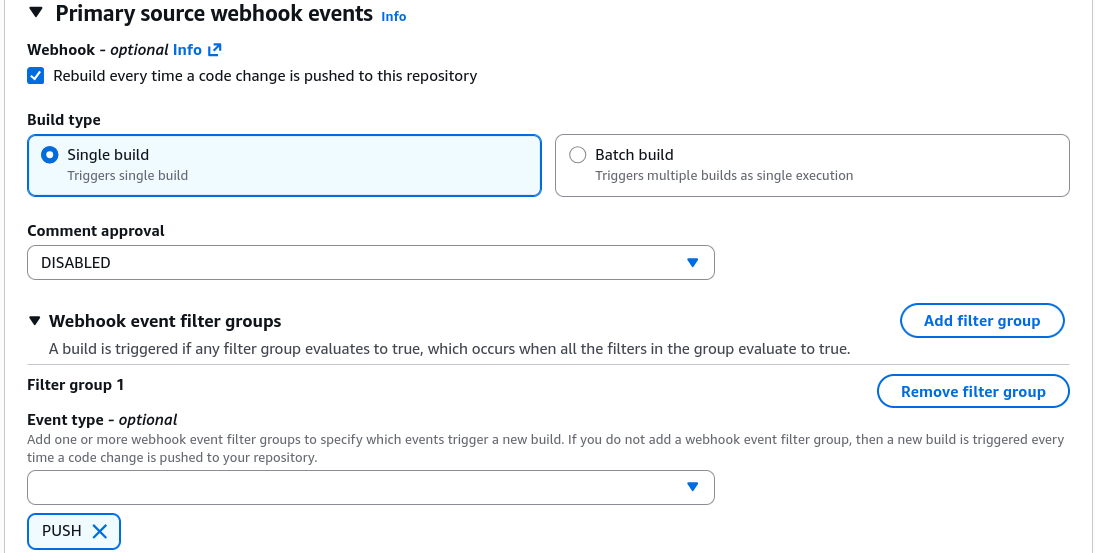

  • Hook the Change Sensor (Webhooks): Check the box to Rebuild every time a code change is pushed to this repository ──► set the Filter Group event type parameter strictly to PUSH, leaving Pull Request and Release rules unchecked for now, bro!

🐳 3. Shaping the Virtual Build Environment​

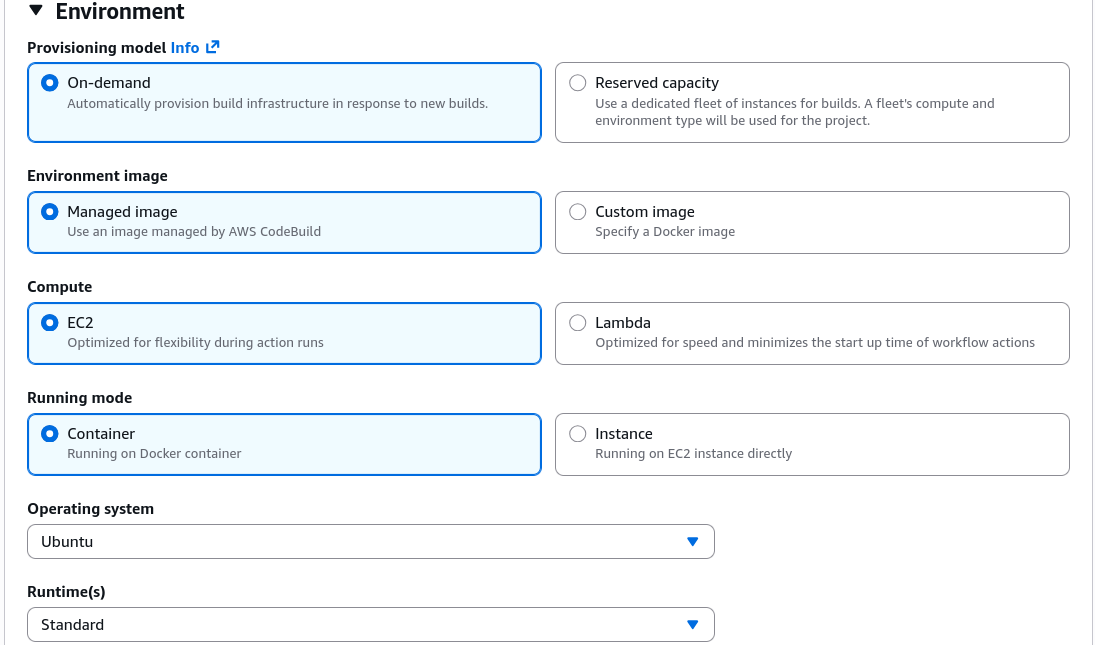

  • Select the Host OS: Under the Environment settings block, toggle the OS selection over to Managed image ──► pick Ubuntu as your Linux base.
  • Dial in the Curated Runtime Image:
    • Set the Environment Runtime dropdown to Standard.

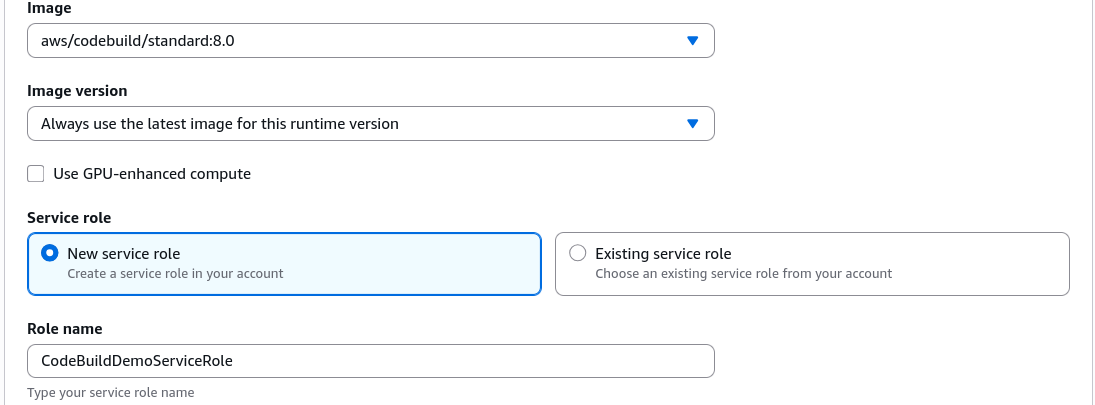

    • Select the latest container image version available from the list (like aws/codebuild/standard:8.0 or newer) ──► toggle the dropdown to Always use the latest image for this runtime version.
  • Forge the Security Boundaries: Choose New service role and name it CodeBuildDemoServiceRole so AWS can dynamically write the necessary backend CloudWatch and S3 permissions policies.
  • Additional Optimization Configurations:
    • The Financial Governor: Under additional configuration options, slash the hard runtime Timeout limit down from the generic 1 hour default to a tight 10 minutes to kill runaway compile loops before they run up your bill.

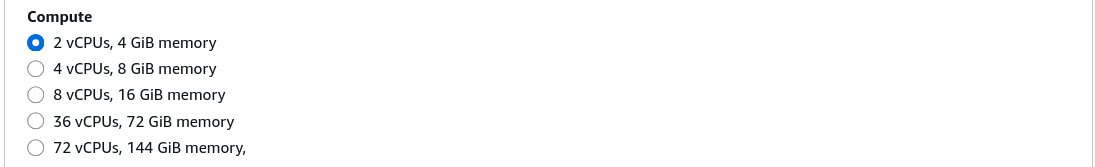

    • Compute Dimensions: Keep the architecture fleet pinned to the entry-level 4 GB Memory / 2 vCPU size baseline.
    • The Network Isolation Option: Note the VPC selector dropdown panel here. If your unit tests ever need to securely fetch data seeds out of an isolated RDS instance or private cluster during execution, you would link your private subnets right here.

📄 4. Declaring the Build Instruction Track​

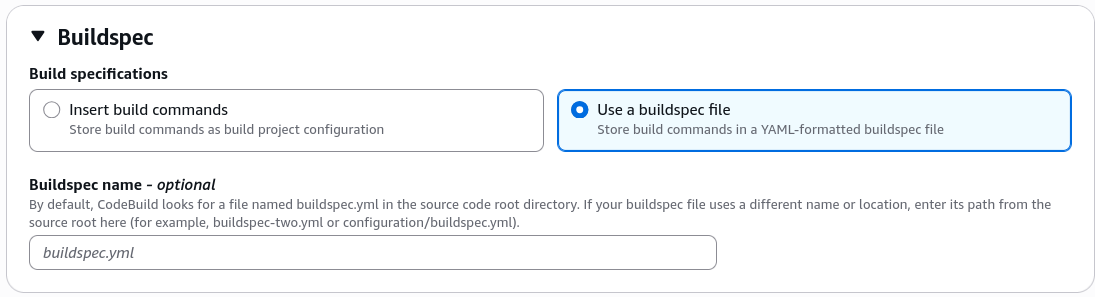

  • The Command Framework Blueprint: Under the Buildspec settings panel, pick the selection locked to Use a buildspec file.
  • The Strict Filename Anchor: Ensure the text prompt box dictates the exact runtime target name: buildspec.yml.

🧪 5. Triggering the Initial Test Flight (The Expected Crash!)​

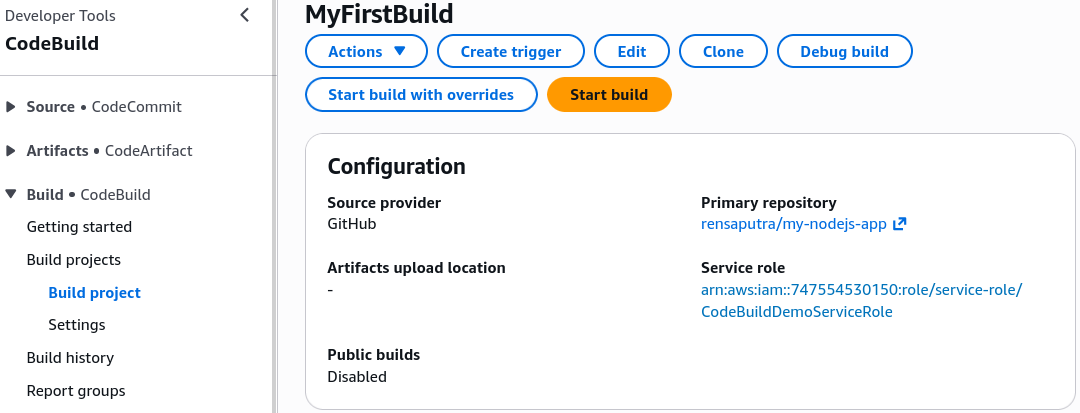

  • Launch the Container Rocket: Scroll all the way down to the base of the designer panel and hit Create build project ──► once baked, click Start build.

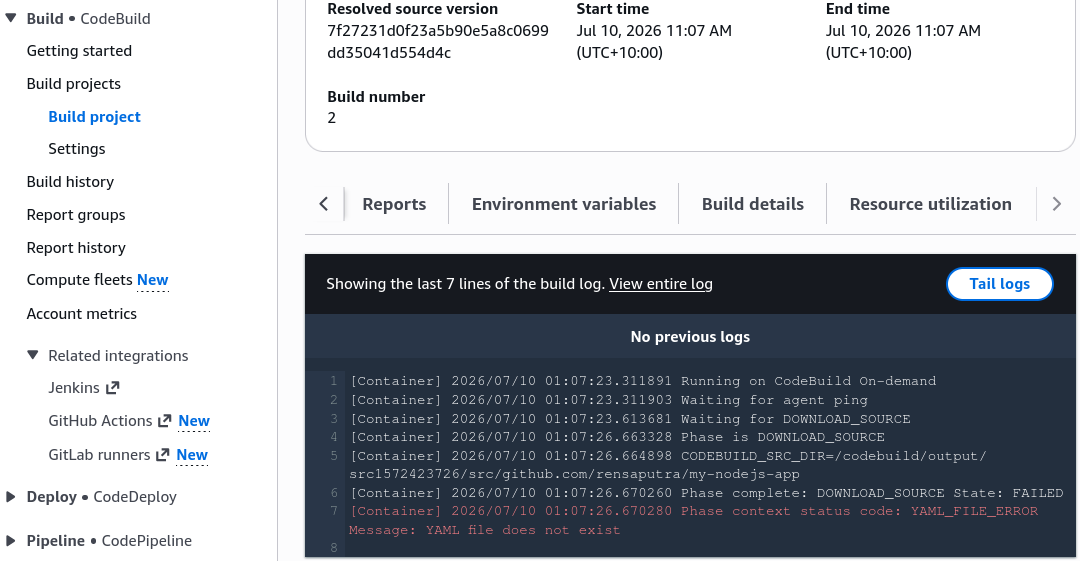

  • Watch the Phase Logs: The execution phase immediately transitions from SUBMITTED to COMPLETED. However, if you look closely, the build status is marked as Failed.
  • Read the Diagnostic Output: Click into the CloudWatch build phase logs panel. The engine throws a clear error message stating: YAML_FILE_ERROR Message: YAML file does not exist.
  • The Architecture Lesson: This failure is 100% expected. CodeBuild spun up the container successfully, but because we haven't actually written and committed our blueprint execution file to the root of our Git repository yet, the compiler engine had no choice but to drop the line.
