STS Overview

AWS Security Token Service (STS) is the undisputed core engine of temporary access control across the entire cloud. 🛡️

Whenever a user, script, container, or cross-account deployment needs to touch an AWS resource without embedding static, risky IAM access keys inside source code, STS is the service issuing the short-lived credentials.

Key Takeaways​

Let’s check the core API methods, session durations, cross-account handshakes, and the high-stakes MFA Policy condition checks you need to know for the DVA-C02 exam.

🧰 The Core STS API Command Matrix​

While STS has a vast set of operations, the exam tests four foundational API actions:

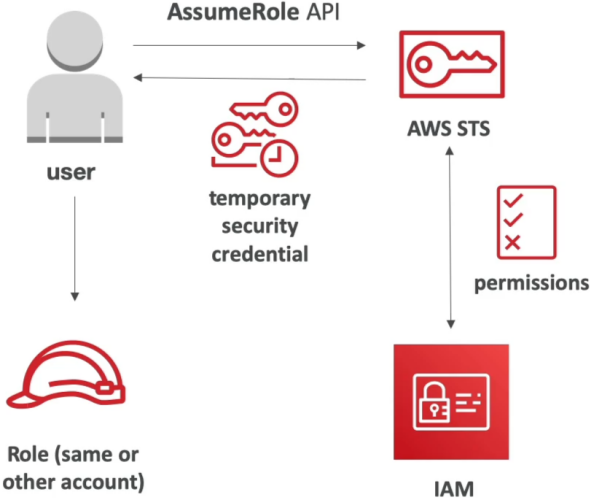

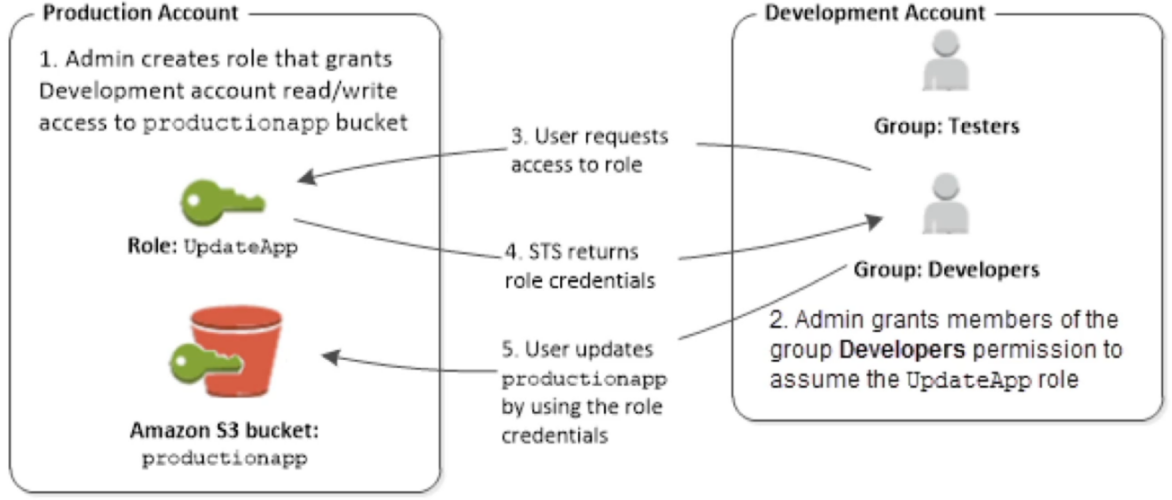

🌉 Cross-Account Access (The AssumeRole Pattern)​

When Account A needs to access resources inside Account B (e.g., a CI/CD runner in Account A deploying code into an S3 bucket in Account B), never pass long-term access keys across the boundary!

📦 ACCOUNT A (Trusting Principal)             🏛️ ACCOUNT B (Resource Owner)
   │                                              │
   ├── 1. Fires sts:AssumeRole ──────────────────►│ 2. Checks IAM Role Trust Policy
   │                                              │    (Does Account B trust Account A?)
   │◄── 3. Returns Temporary AWS Credentials ─────┤
   │                                              │
   └── 4. Calls s3:PutObject using STS Keys ─────►📦 Targets S3 Bucket in Account B

🚨 The Dual-Trust Condition Requirement:​

Cross-account access FAILS unless permissions are explicitly granted on BOTH sides:

1. Account B (Target): The IAM Role’s Trust Policy must list Account A as a trusted Principal allowed to execute sts:AssumeRole.
2. Account A (Source): The IAM User/Role identity policy in Account A must explicitly grant the sts:AssumeRole permission targeting Account B's Role ARN!

🔐 Enforcing Programmatic MFA via GetSessionToken​

This is a top-tier DVA-C02 validation checkpoint. If an IAM policy demands MFA to perform high-risk API operations (like terminating an EC2 instance), passing standard user access keys won't cut it.

Step 1: The Strict IAM Policy Condition​

An administrator attaches a policy enforcing the explicit context condition key:

{
  "Effect": "Allow",
  "Action": ["ec2:StopInstances", "ec2:TerminateInstances"],
  "Resource": "*",
  "Condition": {
    "Bool": {
      "aws:MultiFactorAuthPresent": "true"
    }
  }
}

Step 2: Requesting Temporary MFA Keys via CLI/SDK​

The user cannot run aws ec2 stop-instances directly using long-term credentials because aws:MultiFactorAuthPresent evaluates to false. Instead, they call GetSessionToken passing their hardware/virtual MFA device details:

aws sts get-session-token \
    --serial-number "arn:aws:iam::123456789012:mfa/rendy" \
    --token-code "654321" \
    --duration-seconds 3600

Step 3: Trading the Triple-Key Response​

STS validates the 6-digit code against the MFA serial number and returns a short-lived credential set containing three elements:

1. AccessKeyId
2. SecretAccessKey
3. SessionToken

The developer sets these three environment variables inside their terminal SDK. Because these temporary keys were issued via an MFA verification loop, aws:MultiFactorAuthPresent now evaluates to true, instantly unlocking the ec2:StopInstances API action!

Exam Tips​

• The Decryption Error Scenario: If a scenario presents a developer getting a long, encrypted string error message when an API call fails with AccessDenied, and asks how to read the underlying policy failure—select using the aws sts decode-authorization-message CLI command.
• The Identity Debugging Command: If a deployment script inside an EC2 instance needs to dynamically inspect its own assumed IAM Role ARN and Account ID to set up dynamic S3 paths—look straight for invoking sts:GetCallerIdentity!
• The MFA Enforced API Execution: If a multi-choice question asks how a developer can programmatically execute API operations protected by an aws:MultiFactorAuthPresent: true condition—target the answer that calls sts:GetSessionToken with --serial-number and --token-code, and configures the resulting SessionToken alongside the access keys!
