CloudFormation - Secrets Manager & SSM Integration

Using CloudFormation Dynamic References to inject SSM Parameters or Secrets Manager secrets directly into IaC templates is how you stop hardcoding sensitive credentials into your code repositories forever. 🏎️🔒

Instead of manually passing secrets or creating custom Lambda backed custom resources, CloudFormation dynamically resolves external parameters at stack deployment time.

Key Takeaways​

Let's go over the dynamic reference syntax, the parameter pattern differences, and the two major RDS/Secrets Manager architecture patterns for you to master DVA-C02 exam scenarios.

⚡ The Dynamic Reference Resolution Syntax​

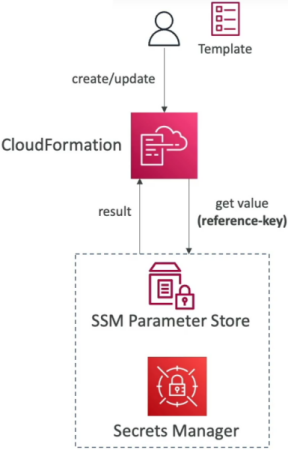

All dynamic references in CloudFormation use the standard {{resolve:service-name:reference-key}} pattern. CloudFormation resolves these values only during stack create, update, or delete operations.

                               ┌────────────────────────────────────────────────────────┐
                               │           DYNAMIC REFERENCES IN CLOUDFORMATION          │
                               └───────────────────────────┬────────────────────────────┘
                                                           │
             ┌─────────────────────────────────────────────┼─────────────────────────────────────────────┐
             ▼                                             ▼                                             ▼
📄 `ssm`                                        🔐 `ssm-secure`                               🔑 `secretsmanager`
  • Plaintext SSM parameters                     • KMS-encrypted SSM parameters                • AWS Secrets Manager Secrets
  • Syntax:                                      • Syntax:                                      • Syntax:
    `{{resolve:ssm:path:version}}`                 `{{resolve:ssm-secure:path:version}}`          `{{resolve:secretsmanager:secret-id:SecretString:json-key}}`

🛠️ Dynamic Reference Examples​

A. Plaintext SSM Parameter (ssm)​

Used for plain string configuration data (e.g., retrieving a golden AL2023 AMI ID or S3 Access Control settings):

Resources:
  MyEC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      ImageId: "{{resolve:ssm:/my-app/dev/golden-ami-id:1}}"

B. Encrypted SSM Parameter (ssm-secure)​

Used for sensitive data stored in Parameter Store as a SecureString. CloudFormation accesses the value via KMS and injects it into supported resource properties without exposing the actual plaintext value in stack outputs or logs:

Resources:
  IAMUser:
    Type: AWS::IAM::User
    Properties:
      UserName: "MyAdminUser"
      LoginProfile:
        Password: "{{resolve:ssm-secure:/my-app/dev/db-password:1}}"

C. AWS Secrets Manager (secretsmanager)​

Used to retrieve secrets stored as JSON key-value pairs or plaintext strings inside Secrets Manager:

Resources:
  MyRDSInstance:
    Type: AWS::RDS::DBInstance
    Properties:
      DBName: MyRDSInstance
      MasterUsername: "{{resolve:secretsmanager:MyRDSSecret:SecretString:username}}"
      MasterUserPassword: "{{resolve:secretsmanager:MyRDSSecret:SecretString:password}}"

🏗️ CloudFormation & RDS Secrets: Two Architecture Patterns​

When managing an RDS or Aurora database alongside Secrets Manager inside CloudFormation, you have two primary deployment patterns:

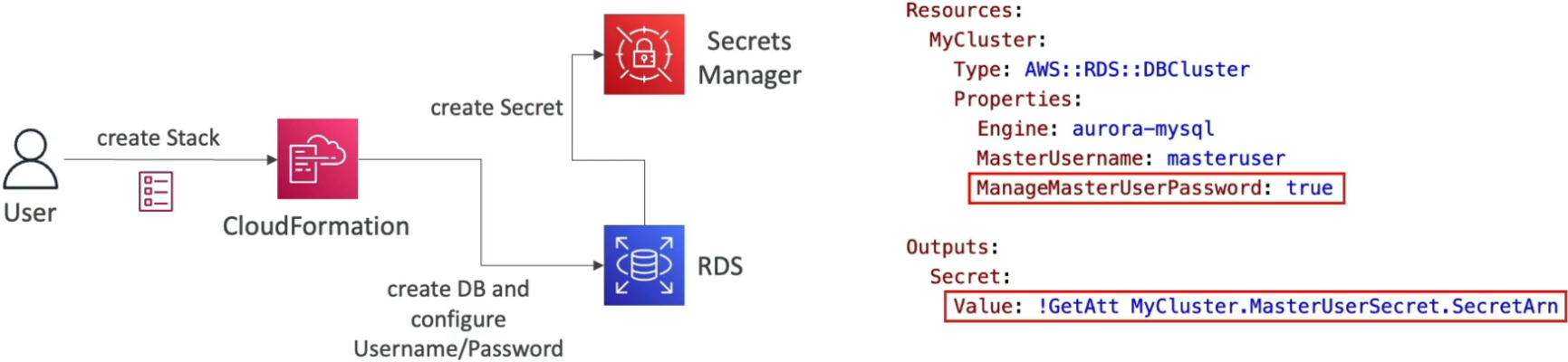

🔹 Pattern 1: RDS Native Secret Management (ManageMasterUserPassword)​

• How it works: You set ManageMasterUserPassword: true on your AWS::RDS::DBCluster or AWS::RDS::DBInstance resource.
• The Power: Amazon RDS automatically creates and manages the secret inside Secrets Manager on your behalf, including automated password rotation!
• Retrieving the Secret ARN: To pass the generated secret ARN to other resources (like a Lambda function), use Fn::GetAtt on the DB resource:

Outputs:
  DatabaseSecretArn:
    Value: !GetAtt MyRDSCluster.MasterUserSecret.SecretArn

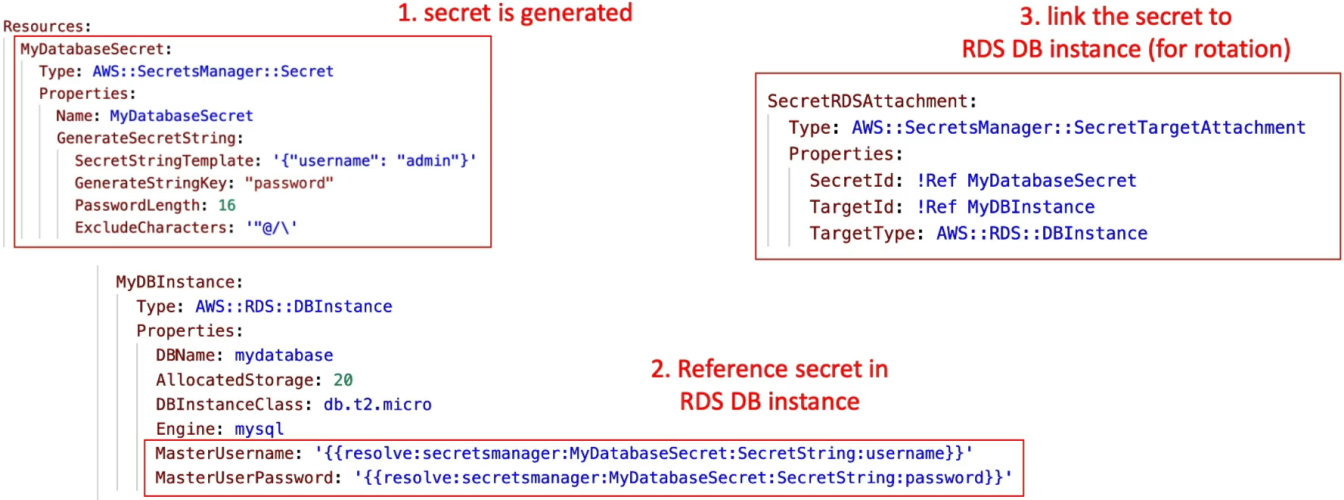

🔹 Pattern 2: Template-Managed Secret with Dynamic Reference & Attachment​

• How it works: You explicitly declare AWS::SecretsManager::Secret in your template and use GenerateStringKey to automatically generate a random password payload upon stack creation.
• Database Reference: You inject the secret into your AWS::RDS::DBInstance using dynamic references ({{resolve:secretsmanager:...}}).
• The Rotation Link: You declare an AWS::SecretsManager::SecretTargetAttachment resource to explicitly bind the secret to the RDS instance so Secrets Manager can perform scheduled password updates!

Exam Tips​

• The Secret Update Misconception 🚨: Updating the secret value inside Secrets Manager or Parameter Store does NOT automatically trigger a CloudFormation stack update! CloudFormation resolves dynamic references only when a stack operation (create or update) is executed on the template itself.
• RDS ManageMasterUserPassword Shortcut: If a scenario asks for the simplest, lowest-maintenance way to provision an Aurora database in CloudFormation while ensuring full password rotation via Secrets Manager—select using ManageMasterUserPassword: true and fetching the SecretArn via Fn::GetAtt!
