KMS Hands On w/CLI

Running KMS encryption directly via the AWS CLI is the ultimate way to prove you understand what happens under the hood before the SDK abstracts it away.

Stephane's hands-on demo cleanly highlights how raw binary payloads, base64 encodings, and KMS Key Policies interact.

Here is your scan-ready, easy-to-follow playbook for KMS Hands-On with CLI, bro:

🛠️ 1. Creating the Customer Managed Key (CMK)​

  1. Launch KMS Console: Navigate to AWS KMS ──► Select Customer managed keys ──► Hit Create key.

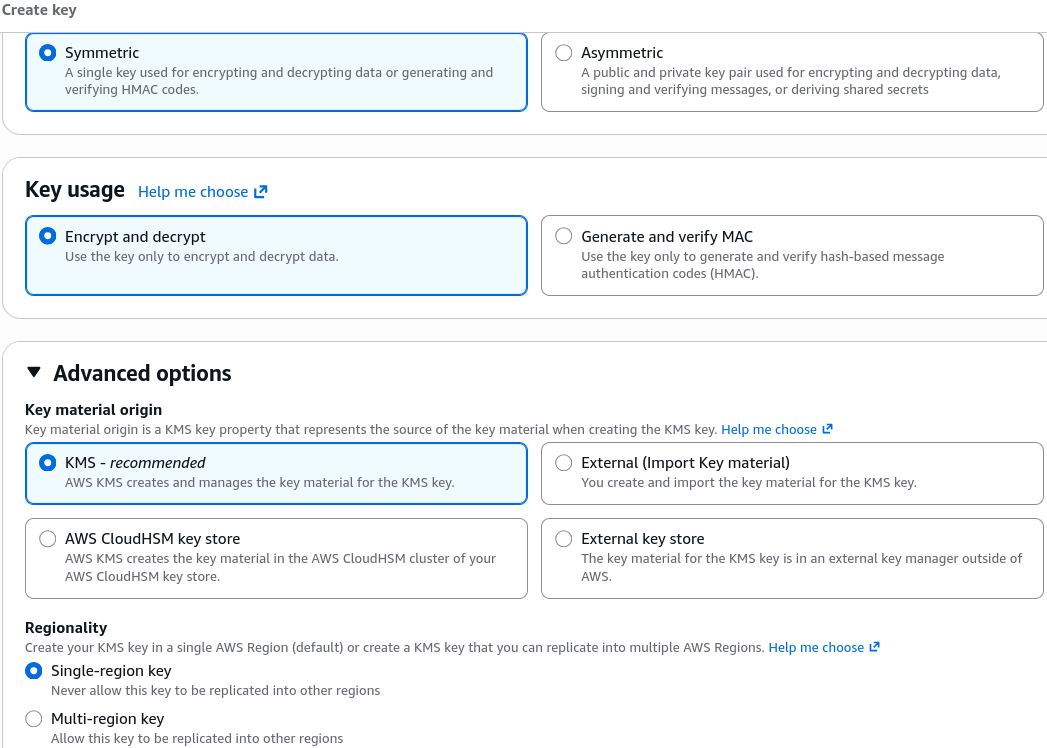

  2. Key Configuration:
    • Key type: Symmetric
    • Key usage: Encrypt and decrypt
    • Advanced options: KMS (Origin), Single-region key (Regionality).
  3. Set Alias Name: Name the key alias tutorial (accessible via alias/tutorial).

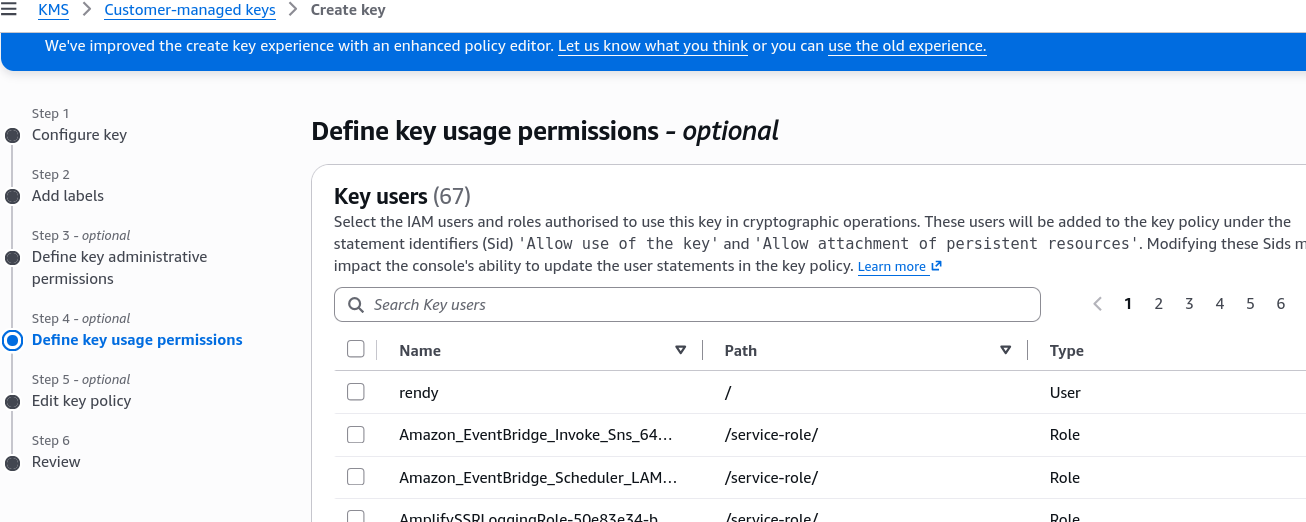

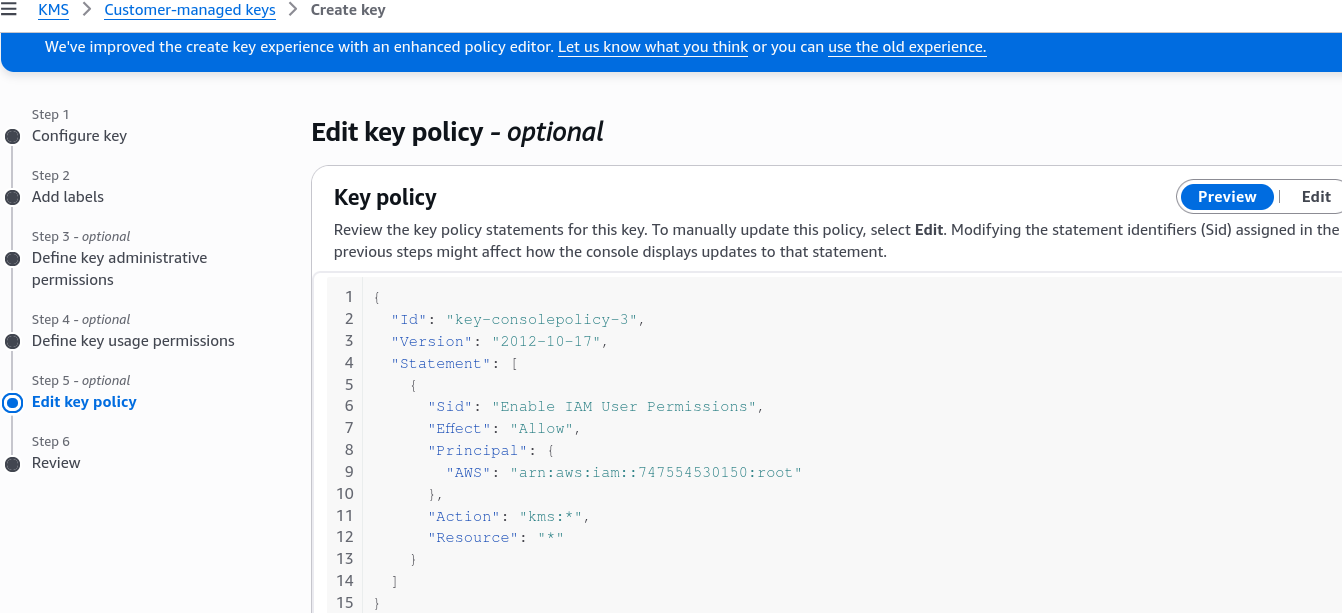

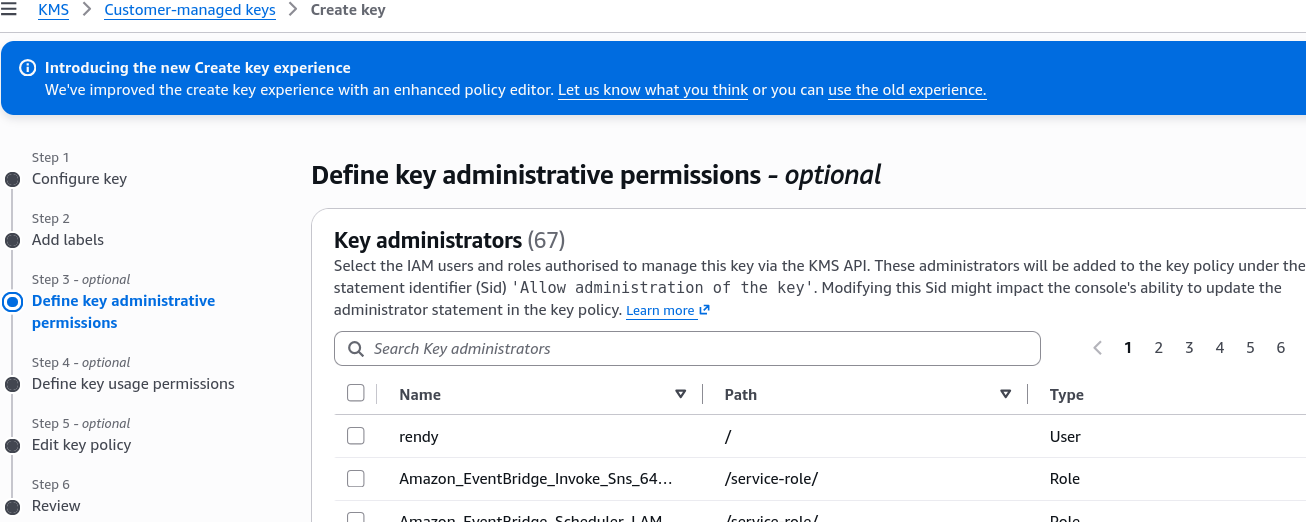

  4. Key Policy Setup (Default Policy): Leave Administrators and Key Users empty to default to the standard Root/IAM delegation policy. This enables any user/role with proper IAM permissions (kms:Encrypt, kms:Decrypt) to use the key.

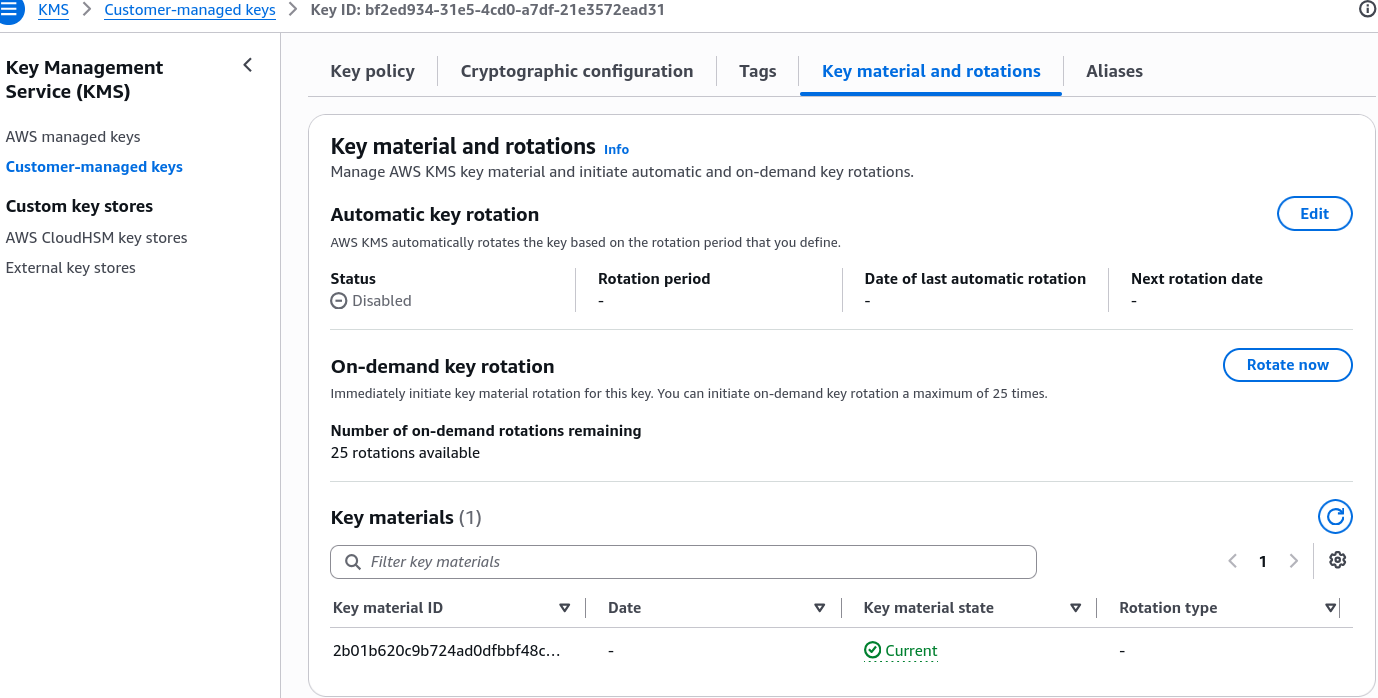

  5. Enable Rotation (Optional): Once created. Go to the Key rotation tab ──► Enable Automatic key rotation (configurable between 90 to 2,560 days, default 365 days).

🔐 2. CLI Encryption Workflow (Plaintext ──► Ciphertext)​

Step A: Create the Target Secret File​

Create a plain text file named ExampleSecretFile.txt with your secret text:

ExampleSecretFile.txt
SuperSecretPassword

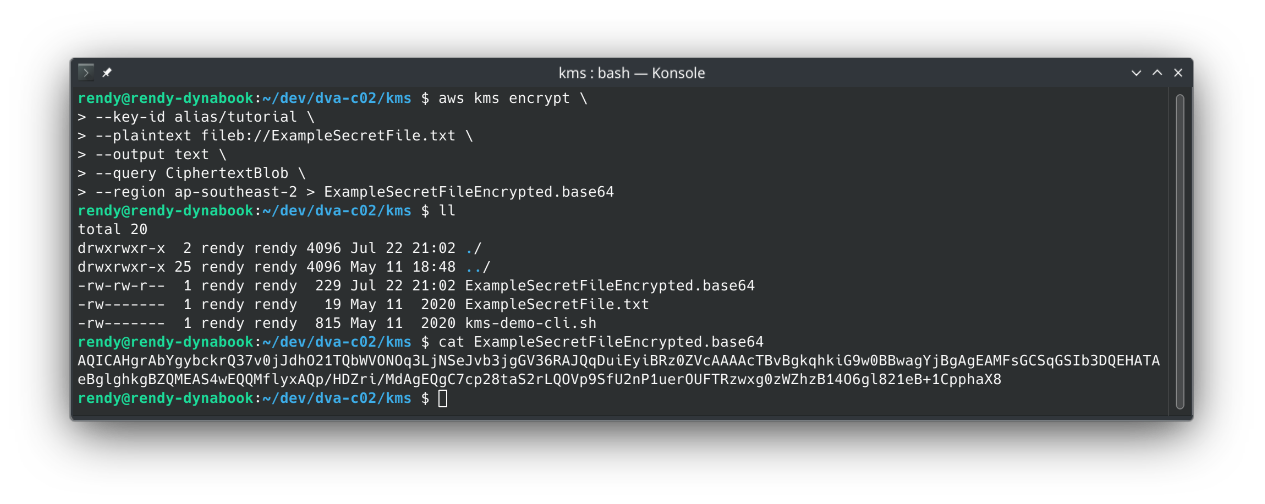

Step B: Call aws kms encrypt​

Invoke KMS using the key alias. Output the returned base64-encoded ciphertext directly to a file:

aws kms encrypt \
    --key-id alias/tutorial \
    --plaintext fileb://ExampleSecretFile.txt \
    --output text \
    --query CiphertextBlob \
    --region ap-southeast-2 > ExampleSecretFileEncrypted.base64

This command encrypts the plaintext file using the tutorial CMK and saves the base64-encoded ciphertext (plaintext that has been encrypted) to ExampleSecretFileEncrypted.base64.

Step C: Decode Base64 to Raw Ciphertext Binary​

KMS requires raw binary data for decryption. Decode the base64 string into a raw binary file:

  • Linux / macOS:
base64 --decode ExampleSecretFileEncrypted.base64 > ExampleSecretFileEncrypted
  • Windows (PowerShell):
certutil -decode .\ExampleSecretFileEncrypted.base64 .\ExampleSecretFileEncrypted

🔓 3. CLI Decryption Workflow (Ciphertext ──► Plaintext)​

Step A: Call aws kms decrypt​

Notice that you do NOT need to specify the --key-id parameter during decryption! The metadata identifying which KMS key encrypted the payload is permanently embedded inside the header of the raw ciphertext blob itself.

aws kms decrypt \
    --ciphertext-blob fileb://ExampleSecretFileEncrypted \
    --output text \
    --query Plaintext \
    --region ap-southeast-2 > ExampleSecretFileDecrypted.base64

Step B: Decode Base64 to Plaintext Text File​

Convert the base64-encoded output back into readable plaintext:

  • Linux / macOS:
base64 --decode ExampleSecretFileDecrypted.base64 > ExampleSecretFileDecrypted.txt
  • Windows (PowerShell):
certutil -decode .\ExampleFileDecrypted.base64 .\ExampleFileDecrypted.txt

Step C: Verify the Decrypted Payload​

cat ExampleSecretFileDecrypted.txt
# Output: SuperSecretPassword

Exam Tips​

  • The fileb:// Prefix Requirement 🚨: When passing raw binary files (or files to be treated as raw bytes) to AWS CLI encryption commands, you must use fileb:// (file binary), NOT file://! Using standard file:// causes character-encoding corruption on binary payloads.
  • The Embedded Key ID Secret: If an exam question asks how aws kms decrypt knows which Customer Managed Key to use when decrypting a ciphertext file without requiring a Key ARN parameter—remember that KMS automatically embeds key metadata inside the ciphertext header string.
  • 4 KB Payload Limit Trap: Direct calls to aws kms encrypt can only handle payloads up to 4,096 bytes (4 KB)! If your file exceeds 4 KB, you must use Envelope Encryption via GenerateDataKey.
