KMS Overview

AWS Key Management Service (KMS) is the undisputed core encryption hub across the entire AWS ecosystem. 🏎️🔑

Whether you are encrypting S3 buckets, EBS volumes, Lambda environment variables, or SSM Parameters, KMS handles the cryptographic key material, authorization logic, and CloudTrail audit logging out of the box.

Key Takeaways​

Let's explore the concepts of the core key types, rotation mechanics, regional isolation rules, and custom key policies before we dive into hands-on in the next section.

🔑 Symmetric vs. Asymmetric KMS Keys​

                               ┌────────────────────────────────────────────────────────┐
                               │                    AWS KMS KEYS                        │
                               └───────────────────────────┬────────────────────────────┘
                                                           │
             ┌─────────────────────────────────────────────┴─────────────────────────────────────────────┐
             ▼                                                                                           ▼
🔐 SYMMETRIC KEYS                                                                           🔓 ASYMMETRIC KEYS
  • Single Secret Key (Encrypt = Decrypt)                                                     • Public/Private Key Pair
  • AWS Services ALWAYS use Symmetric Keys                                                    • Encryption/Decryption OR Sign/Verify
  • Raw key material NEVER leaves KMS HSMs                                                    • Public Key can be downloaded outside AWS!
  • You call API methods (`kms:Encrypt`, `kms:Decrypt`)                                       • Private Key NEVER leaves KMS HSMs

• Symmetric Keys 🔐: Uses a single key for both encryption and decryption. Every AWS service integrated with KMS requires a symmetric key. You never see or download the raw key material; you only interact with it via KMS API calls.
• Asymmetric Keys 🔓: Consists of a Public Key (which can be exported outside AWS for external users to encrypt payloads) and a Private Key (stored safely inside KMS HSMs to perform decryption inside your cloud account).

🏷️ The KMS Key Hierarchy & Pricing Matrix​

🌐 Regional Isolation & The Cross-Account Snapshot Copy Pattern​

KMS Keys are strictly bound to a single AWS Region! You cannot use a KMS Key in us-east-1 to directly encrypt or decrypt data residing in ap-southeast-2.

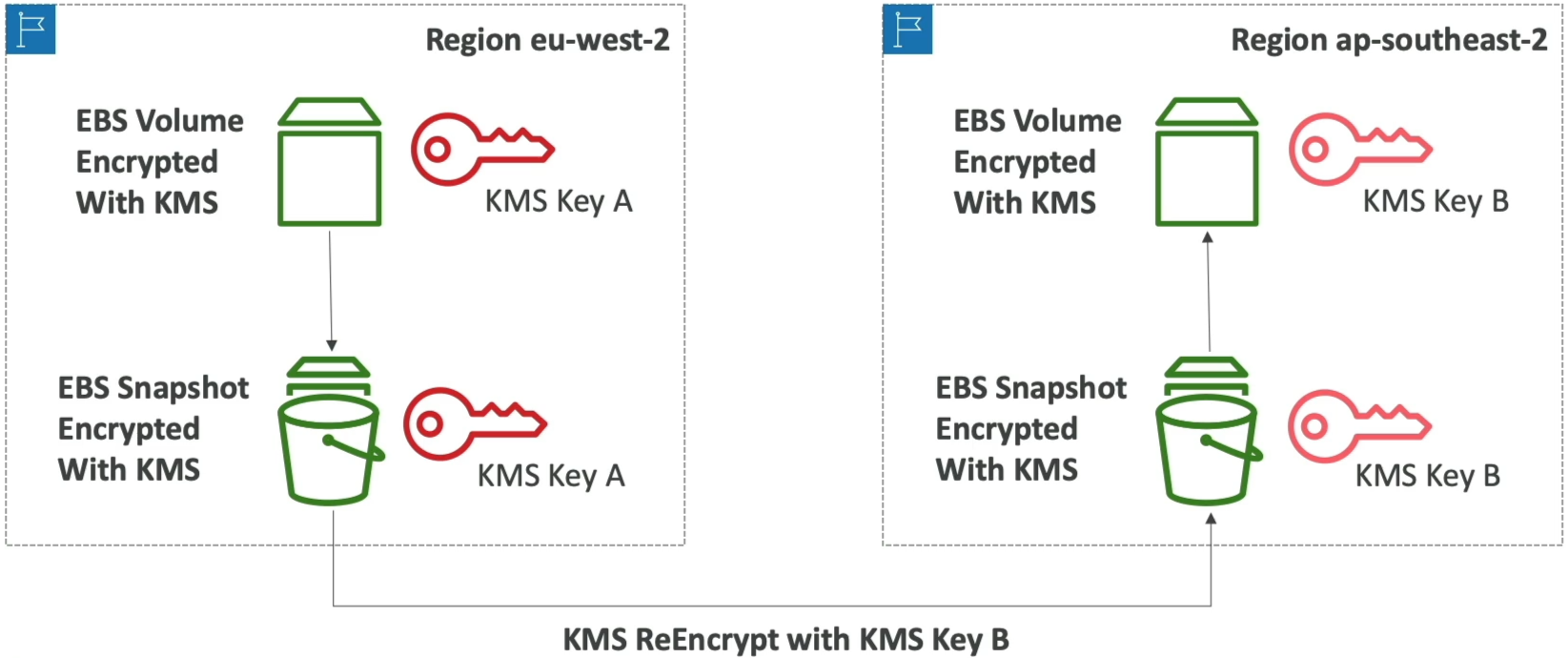

🔄 Pattern A: Cross-Region Resource Migration​

To copy an encrypted resource (like an EBS Snapshot or RDS Snapshot) to a new region, you must execute a Re-Encryption Handshake during the copy process:

1. Snapshot is encrypted in Region A using KMS Key A.
2. Initiating a Region Copy operation re-encrypts the snapshot data using KMS Key B in Region B.
3. The new snapshot in Region B can now be restored as a volume!

🤝 Pattern B: Cross-Account Resource Sharing​

To share an encrypted snapshot with another AWS account:

1. You CANNOT share resources encrypted with AWS Managed Keys (aws/ebs) across accounts! You MUST use a Customer Managed Key (CMK).
2. Update the CMK's Key Policy in Account A to grant kms:Decrypt, kms:DescribeKey, and kms:CreateGrant permissions to Account B.

3. Share the snapshot with Account B.
4. Account B copies the snapshot into its own account, re-encrypting it using Account B's local CMK!

📄 KMS Key Policies: The Ultimate Access Control​

Unlike standard IAM policies, IAM policies ALONE are not enough to access a KMS key! You must explicitly authorize access inside the KMS Key Policy.

🔒 DEFAULT KEY POLICY (Delegates to IAM):
  Allows root account principal ──► Enables IAM policies attached to users/roles to grant access.

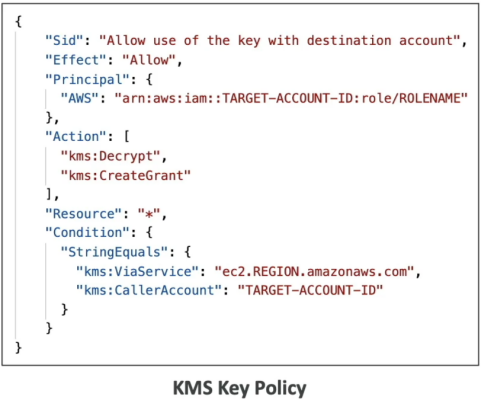

🛑 CUSTOM KEY POLICY (Explicit Control & Cross-Account):
  Directly dictates which users, roles, or EXTERNAL ACCOUNTS can use or administer the key!

{
  "Sid": "Allow Cross-Account Use of the Key",
  "Effect": "Allow",
  "Principal": {
    "AWS": "arn:aws:iam::999999999999:root"
  },
  "Action": [
    "kms:Encrypt",
    "kms:Decrypt",
    "kms:ReEncrypt*",
    "kms:GenerateDataKey*",
    "kms:DescribeKey"
  ],
  "Resource": "*"
}

Exam Tips​

• The Cross-Account Snapshot Sharing Trap 🚨: If a scenario asks why an engineer cannot share an encrypted EBS snapshot with a secondary AWS account—check if the snapshot is encrypted with an AWS Managed Key (aws/ebs). AWS Managed Keys CANNOT be shared cross-account! The snapshot must be re-encrypted using a Customer Managed Key with an updated Key Policy.
• The CloudTrail Audit Requirement: If a question asks how to track every single user, role, or service attempting to encrypt or decrypt data using KMS keys—target Amazon CloudTrail integration! Every KMS API call (kms:GenerateDataKey, kms:Decrypt) is logged as a CloudTrail event.
• Cross-Region Snapshot Copying: If a prompt asks how to move an encrypted RDS database backup to another AWS region—select the option that copies the snapshot to the target region while specifying a target region KMS key for re-encryption.

Practice Test​

Question 1: A development team has created a new IAM user that has s3:putObject permission to write to an S3 bucket. This S3 bucket uses server-side encryption with AWS KMS managed keys (SSE-KMS) as the default encryption. Using the access key ID and the secret access key of the IAM user, the application received an access denied error when calling the PutObject API.

As a Developer Associate, how would you resolve this issue?

• Correct the policy of the IAM user to allow the kms:GenerateDataKey action
• Correct the policy of the IAM user to allow the s3:Encrypt action
• Correct the ACL of the S3 bucket to allow the IAM user to upload encrypted objects
• Correct the bucket policy of the S3 bucket to allow the IAM user to upload encrypted objects

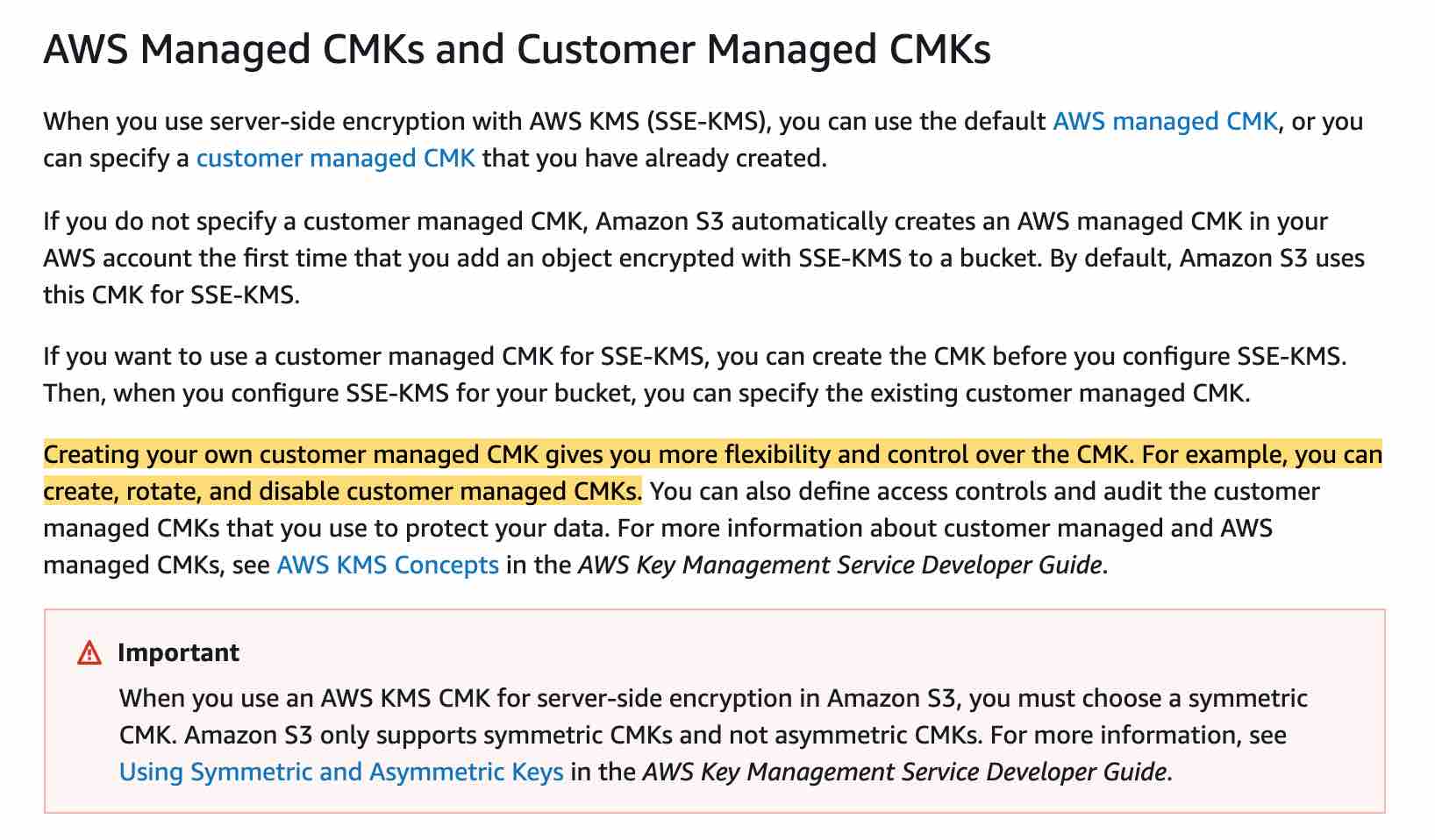

Question 2: A financial services company wants to ensure that the customer data is always kept encrypted on Amazon S3 but wants an AWS managed solution that allows full control to create, rotate and remove the encryption keys.

As a Developer Associate, which of the following would you recommend to address the given use-case?

• Server-Side Encryption with Customer-Provided Keys (SSE-C)
• Server-Side Encryption with Secrets Manager
• Server-Side Encryption with Customer Master Keys (CMKs) Stored in AWS Key Management Service (SSE-KMS)
• Server-Side Encryption with Amazon S3-Managed Keys (SSE-S3)
