Amazon Athena - Overview

Amazon Athena is the absolute king of ad-hoc SQL analytics when you need to query data sitting directly in Amazon S3 without the overhead of provisioning or managing a traditional database server! 📊

Because Athena is completely serverless, it integrates natively into data lakes, log aggregation pipelines, and business intelligence dashboards.

Key Takeaways​

Let's go over the core features, performance optimization techniques, and federated query patterns.

🏗️ Core Architecture & Pricing Model​

  • Engine: Built on top of the open-source Presto / Trino SQL query engine.
  • Supported Formats: Queries CSV, JSON, ORC, Avro, and Apache Parquet directly in S3.
  • Pricing Mechanics ($5 / TB Scanned) 💰: You are billed $5.00 per Terabyte of data scanned from S3 (with a 10 MB minimum per query). DDL statements (CREATE, ALTER, DROP) are 100% free!
  • Serverless & In-Place: Data remains in your S3 buckets—Athena brings the compute to the data.

⚡ Athena Performance Optimization (The Exam Goldmine)​

Because Athena pricing is tied directly to the volume of data scanned, optimizing performance translates directly into massive cost savings!

                               ┌────────────────────────────────────────────────────────┐
                               │             ATHENA PERFORMANCE OPTIMIZATION            │
                               └───────────────────────────┬────────────────────────────┘
                                                           │
             ┌─────────────────────────────────────────────┼─────────────────────────────────────────────┐
             ▼                                             ▼                                             ▼
📊 1. COLUMNAR FORMATS                        📦 2. COMPRESSION                                 📂 3. PARTITIONING & FILE SIZES
  • Use Apache Parquet or ORC                   • Compress files (Snappy, GZIP)                  • Partition S3 paths: `/year=2026/month=07/`
  • Athena reads ONLY queried columns           • Slashes data volume read over wire             • Drastically reduces scanned S3 folders
  • Converts via AWS Glue ETL jobs              • Saves costs & speeds up execution              • Consolidate small files into >128 MB blocks
  1. Use Columnar Data Formats (Parquet / ORC) 📊:
    • Traditional row formats (CSV/JSON) force Athena to read the entire row even if you query just one column.
    • Columnar formats allow Athena to selectively read only the specific columns requested in the SELECT query, cutting scanned data by up to 90%! (Convert CSV to Parquet using AWS Glue ETL).
  2. Compress Data Files 📦:
    • Compress files using Snappy, GZIP, or ZSTD. Smaller file sizes = fewer bytes scanned from S3 = cheaper and faster queries.
  3. Partition Your Data Lakes 📂:
    • Organize S3 bucket prefix paths into virtual partition keys: s3://my-data-bucket/flight-data/year=2026/month=07/day=28/data.parquet
    • When running SELECT * FROM flight_data WHERE year = '2026' AND month = '07', Athena skips 99% of the S3 bucket and scans only that specific subfolder!
  4. Optimize File Sizes 📄:
    • Avoid thousands of tiny KB-sized files. Consolidate data into larger file chunks (128 MB or larger) to reduce S3 request overhead and execution latency.

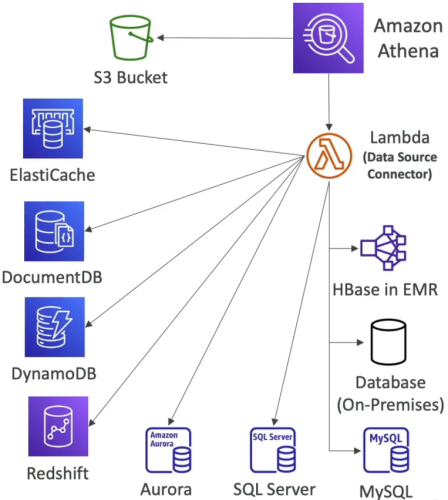

🌉 Athena Federated Query (Beyond S3)​

Athena isn't locked down to S3! With Federated Queries, you can execute a single SQL query that joins datasets across multiple AWS and on-premises data sources in real time.

  • How it Works: Uses AWS Lambda-based Data Source Connectors.
  • Supported Targets: DynamoDB, ElastiCache (Redis), CloudWatch Logs, DocumentDB, RDS (MySQL/PostgreSQL), Redshift, and custom external databases.
  • Example Use Case: Write one SQL statement to join active Redis session IDs with historical user profiles in DynamoDB and order history stored in S3 Parquet files!

Exam Tips​

  • The S3 Log Analysis Rule 🚨: If a question asks how to run ad-hoc SQL queries on S3 access logs, CloudTrail logs, or VPC Flow Logs without setting up a database or ETL cluster—choose Amazon Athena.
  • Cost Optimization Strategy: If a scenario states Athena queries are running too slowly or triggering massive S3 scan bills—select converting raw JSON/CSV data into partitioned Apache Parquet files using AWS Glue!

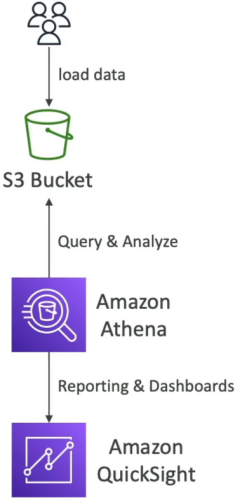

  • QuickSight Integration: Athena serves as the primary data abstraction layer for visualization in Amazon QuickSight.
