SSH

This is where we get to the fun part, some people say it's notorious for being a headache, but I am confident that after this, you'll be SSHing with your eyes closed.

Overview​

• The SSH Landscape: Your computer OS dictates the SSH client you use.

  OS	SSH	Putty	EC2 Instance Connect
  Linux	✅		✅
  Mac	✅		✅
  Windows >= 10	✅	✅	✅
  Older Windows		✅	✅

  Mac/Linux/Windows 10+ have built-in SSH CLI. Older Windows, you'll need to install PuTTY.
  EC2 Instance Connect is browser-based tool. It's the easiest way because it works on everything and doesn't require any setup.

• Troubleshooting: Stephane said a lot of student struggle to get this working, here are some tips:

  • SGs: Did you actually open port 22?
  • IP Whitelisting: If you used "My IP" option, did your internet connection change?
  • The Key File: are you using the correct .pem or .ppk file you downloaded during instance creation?
  • Typos: One wrong character in the IP address or username can cause connection issues.

• The "One is Enough" Rule: You don't need to make all three working. Find the one that works for you (Likely SSH or EC2 Instance Connect) and stick with it. If you can get a shell prompt, you've won.

SSH using Linux or Mac​

• Directory Matters: You must be in the same folder as your .pem file when you run the command, or you have to provide the full path to the file. For example, I have created a special directory .ssh in my home folder to store all my SSH keys.

• No Spaces: Stephane's tip: Remove any spaces from the file name of the key pair.

• Double check SG: Just to be sure, check that port 22 is open to your IP.

  • Permission Denied: SSH is very strict about file permission. If your key file is "too open", SSH will refuse to use it for security reasons. Change the permission to chmod 400 your-key.pem to make it readable only by you.

• Instance IP Address: Find your instance's public IP address from the EC2 console. We will need it shortly.

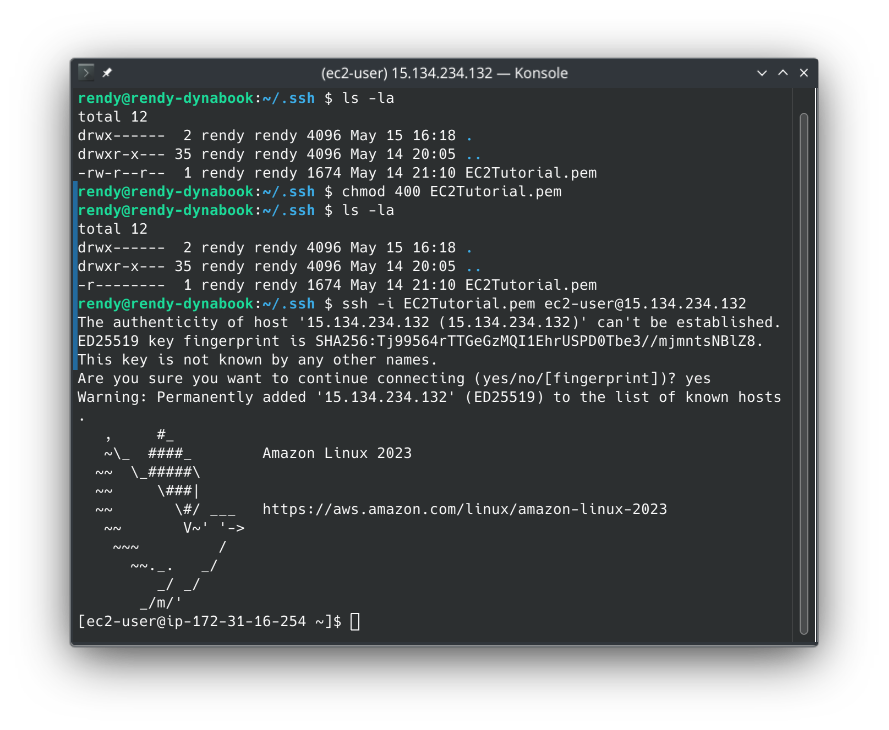

• The Command: Once your permission is set and you're in the right directory, the magic command is:

  SSH Command

  ssh -i your-key.pem ec2-user@<Your-Public-IP>


  You'll likely see "The authenticity of host..." for the first time when you connect. Just type yes to add it to your known_hosts file.

• Confirming You're In: You know you're in when your terminal prompt changes to something like [ec2-user@ip-1721-31-xx-xx ~]$

  • whoami should return ec2-user
  • exit to kill the session and return to your local terminal.

SSH using PuTTY (Windows)​

For Windows older than 10, you need to use PuTTY. The process is almost similar to Linux/Mac, but with a few extra steps to convert the key file and configure PuTTY.

• Convert the Key: PuTTY doesn't understand .pem files, so you need to convert it to .ppk using PuTTYgen.
  • Open PuTTYgen, load your .pem file, and then save it as .ppk. Or if you downloaded the .ppk file directly from AWS, you can skip this step and under "Connection > SSH > Auth", browse to your .ppk file.
• Configure PuTTY: Open the PuTTY app, set the Host Name to ec2-user@<Your-Public-IP>, Port keep it as 22, and under "Connection > SSH > Auth", browse to your .ppk file.
• Connect: Click "Open" to start the SSH session. Just like with Linux/Mac, you'll see a security alert the first time. Click "Yes" to continue.

SSH in Windows 10+​

Windows 10 and later have a native SSH client built right into PowerShell and Command Prompt. The process is very similar to Linux/Mac, but with a few Windows-specific quirks, such as file permissions and the path to the key file. Follow along Stephane's video for the guide.

Troubleshooting​

• The "Timeout" vs. "Refused" Distinction:
  • Connection Timeout: This is 99% a Security Group issue. The bouncer isn't even letting you reach the door.
    • Pro-tip: If the SG looks right, but you still get a timeout, it's likely another firewall blocking port 22 (e.g., corporate, or home).
  • Connection Refused: The bouncer let you in, but there's nobody home. The SSH service isn't running on the instance.
    • The Fix: Restart the instance or terminate and start a new one with AL2023.
  • The "Permission Denied" Error: If you see permission denied (publickey), it usually one of the two user errors:
  • Wrong User: You forgot to use ec2-user.
  • Wrong Key: You're trying to use a .pem file that wasn't the one assigned to that specific instance at launch.
• The "Moving Target" (Public IPs):
  • If your connection worked yesterday but fails today, check your IP.
• Windows Quirks:
  • If your PowerShell says ssh command not found, you don't have the native client installed.
  • The Fix: Go back to the PuTTY method or EC2 Instance Connect.
• The "final" Option: If you've spent 20 minutes fighting with your terminal, just stop, and use the EC2 Instance Connect button in the AWS console.
