Application Load Balancer (ALB) - Hands-On Part 2

In the second part of this hands-on lab, we dive deeper into tightening the security of our ALB and advanced listener rules.

Key Takeaways​

Tightening Network Security (Security Group Chaining)​

Before this step, your backend EC2 instances were exposed to the public internet because their Security Group had port 80 wide open to0.0.0.0/0.

By removing that rule and replacing the source with the Load Balancer's Security Group ID, you achieved a massive security win:

  • The Result: Trying to access the EC2 instance directly via its public IPv4 address now completely times out. The front door is officially locked to the public.

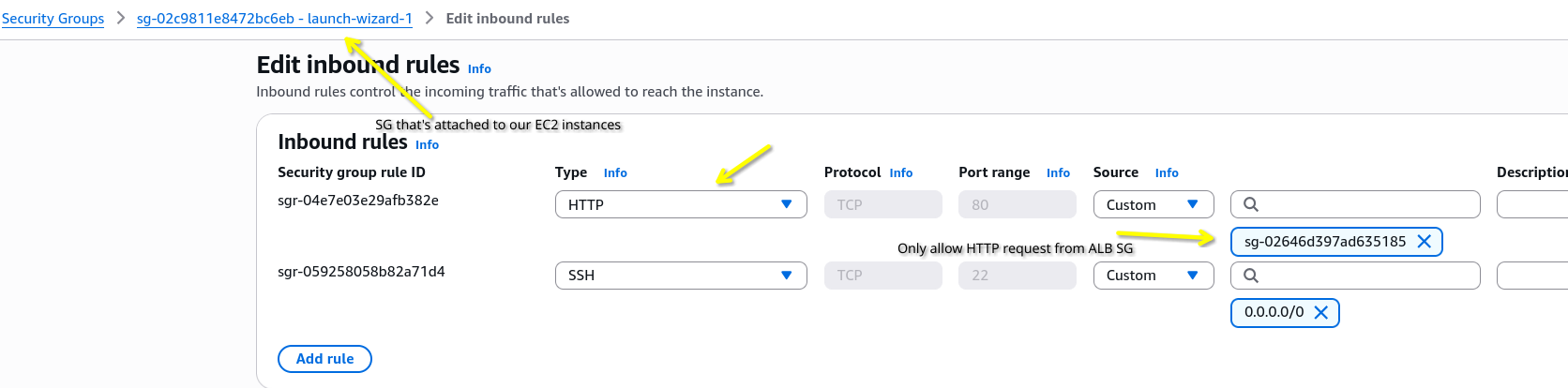

  • The Magic: The ALB can still talk to the instances perfectly fine. The instances now implicitly trust only traffic that has passed through and originated from the ALB. Security Group Chaining

Advanced Listener Rules (Layer 7 Routing)​

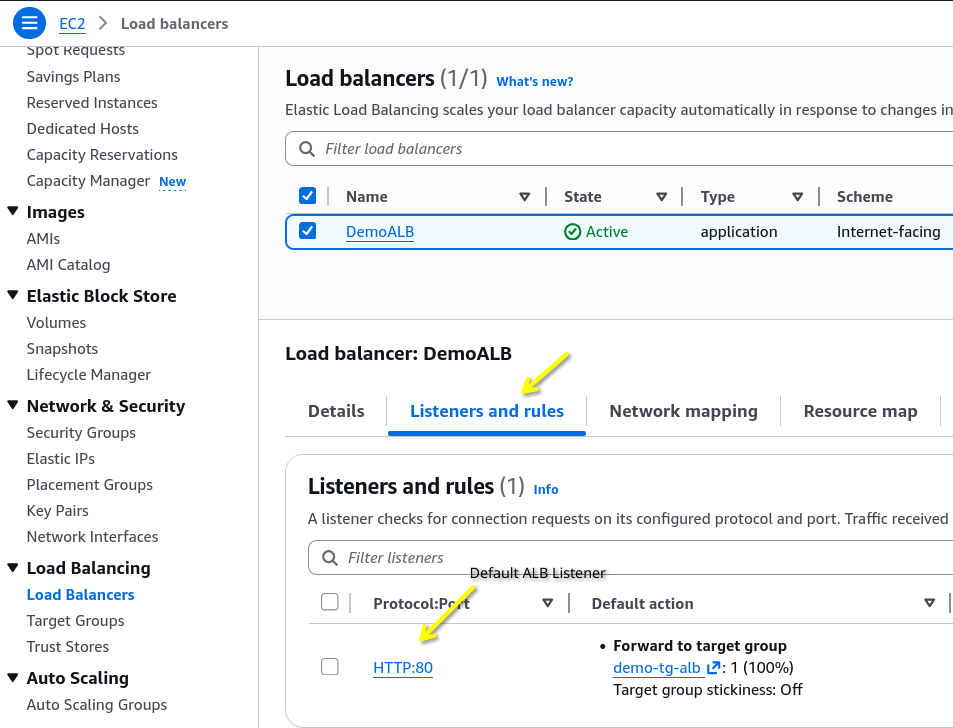

Every ALB comes with a Default Rule (a catch-all that forwards unmatched traffic to your main target group). In this lab, you added a custom conditional Listener Rule ahead of it: Default ALB Listener Rule

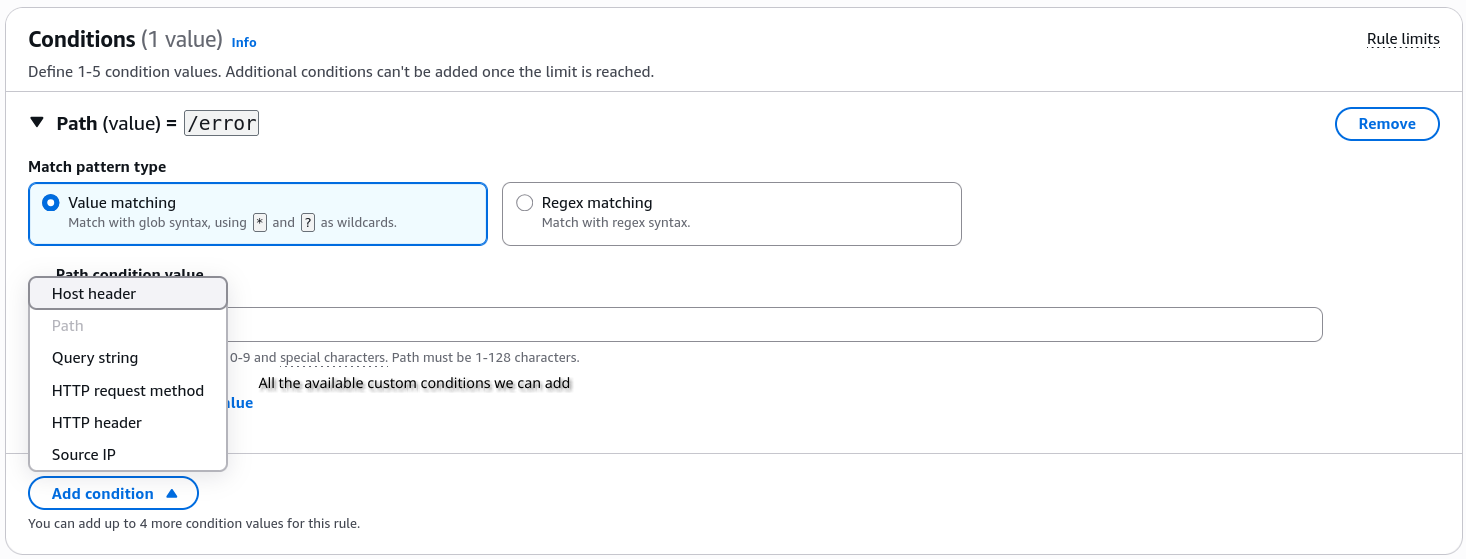

  • The Condition: Path = /error (Layer 7 path-based inspection). ALB Listener Rule Condition

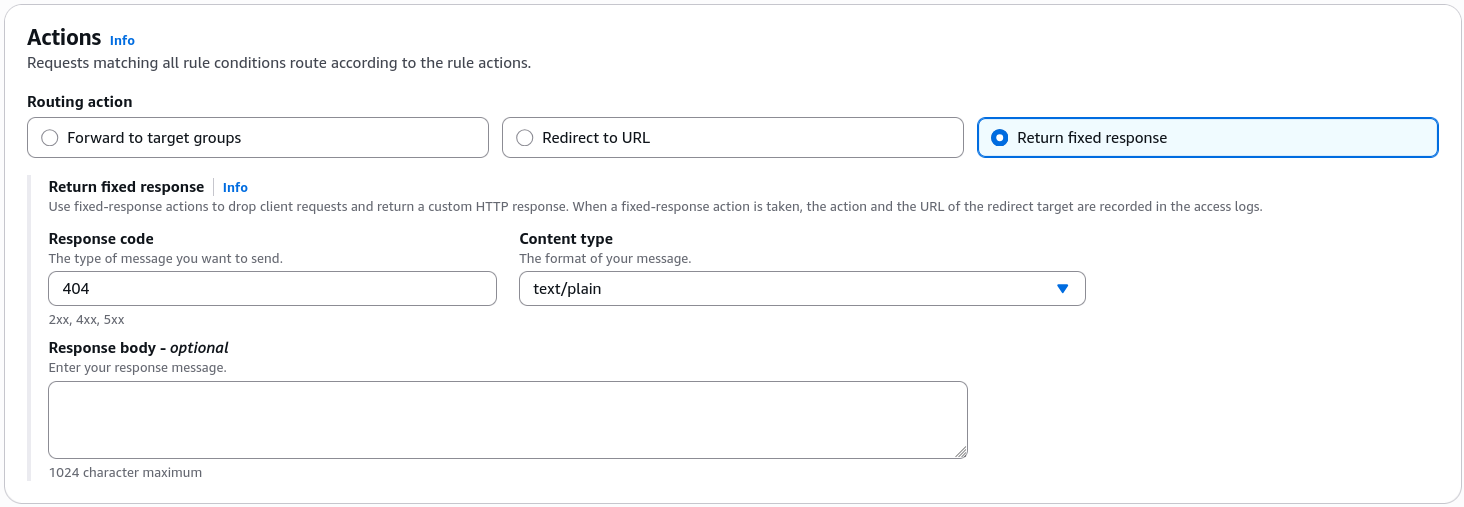

  • The Action: Instead of forwarding the request to a backends server, the ALB bypassed the instances entirely and natively generated a Fixed Response (Status Code: 404, Body: "Not Found", Content-Type: text/plain). ALB available actions

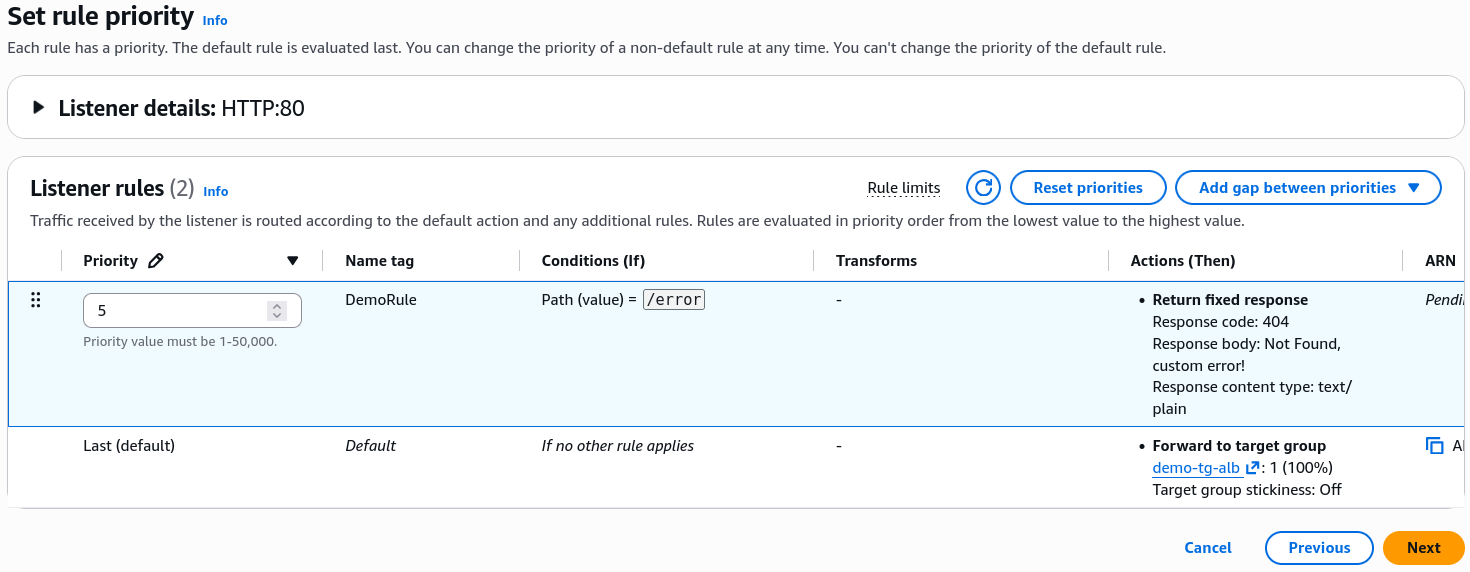

  • Rule Evaluation Priority: AWS evaluates rules in order of their Priority number (e.g., Priority 5 gets evaluated before the catch-all default rule). As soon as a request matches a high-priority rule's condition, the ALB executes the action and stops evaluating further rules. ALB Set Rule Priority

Exam Tips​

  • The Security Group Troubleshooting Scenario: If a scenario says, "You chained your EC2 SG to allow inbound traffic only from the ALB's SG, but now your target group health checks are failing and reporting 0 healthy hosts,: look for an answer pointing to a broken outbound rule. The ALB's SG must have an outbound rule that allows traffic out of the EC2 instances on the health check port.

  • The Static Content Offloading Trap: The exam loves to ask how to minimize load on backend EC2 instances when an application needs to server a static "Maintainance Underway" page or a customized "404 Not Found" page.

    • The Wrong Move" Writing custom routing logic inside your Express/Next.js/Java backend code
    • The Correct Move: Configure an ALB listener rule to return a fixed response natively at the load balancer level. This offloads the entire computing strain from your servers!.
